Nikon VMZ-S6555 Automatic Image Measuring Instrument

NegotiableUpdate on 02/08

Model

Nature of the Manufacturer: Producers

Product Category

Place of Origin

Online Consult

Overview

VMZ-S6555CNC image measuring instrument: Nikon, CNC image measuring instrument, VMZ-S6555,nikon, Nikon Automatic Image Measuring Instrument VMZ-S6555 Data

Product Details

VMZ-S6555 CNC image measuring instrument:Nikon, CNC image measuring instrument, VMZ-S6555,nikon, imager

Nikon AutomaticImage measuring instrumentVMZ-S6555 data, NikonautomaticImage measuring instrumentVMZ-S6555 quotation, NikonautomaticImage measuring instrumentVMZ-S6555 image,

Stage travel: 650mm (X) x 550mm (Y) x 200mm (Z)

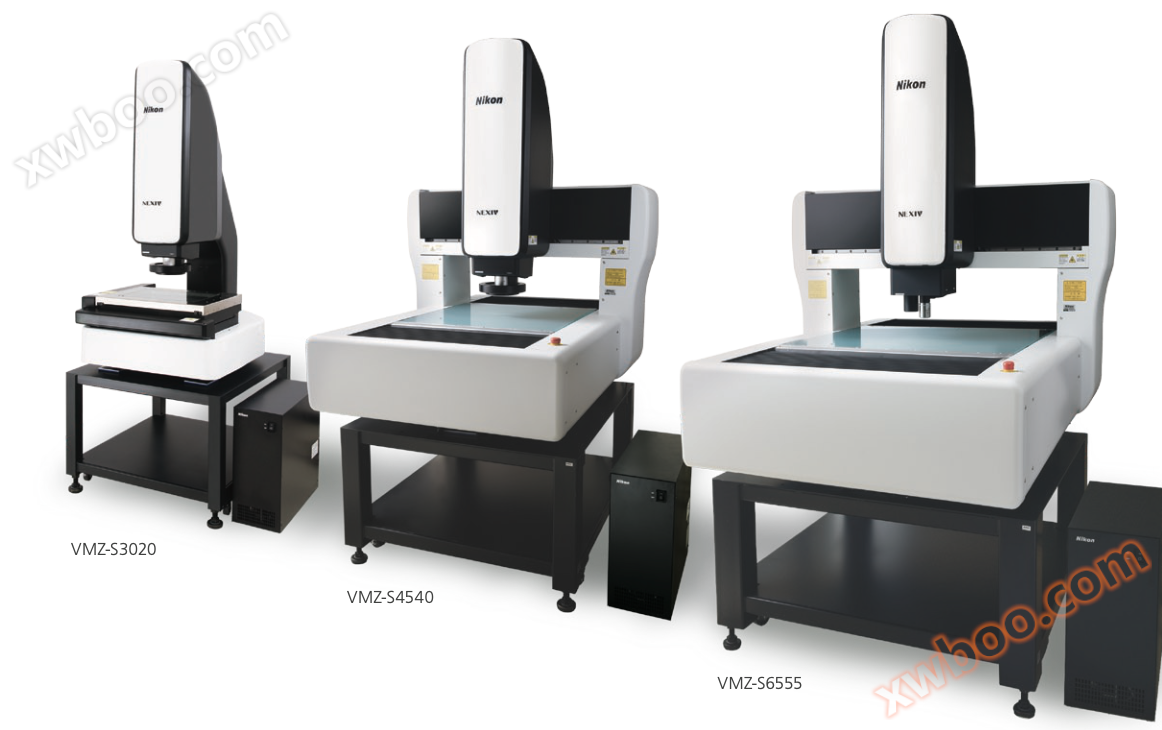

尼康VMZ-S6555图片

Application areas:

Nikon VMZ-S6555, Nikon Automatic Image Measuring Instrument, NIKON 2.5D, Nikon 3D, Nikon VMZ-S6555 Image Measuring Instrument

Suitable for "step-by-step and repetitive" measurement of large components and multiple workpieces on the stage

Type1~3Large PCBs, large plastic molded products, etc

Type4/TZHigh density large PCBs, etc

TypeALarge stamping sheet metal parts, large plastic molded parts, etc

Types 1, 2, and 3- standard magnification zoom heads

Type10.5X~7.5X Type21X~15X Type32X~30X

Types 1, 2, and 3 use Nikon 15X zoom optical system with long working distance, wide field of view (FOV), and a numerical aperture of up to 0.35. All standard zoom heads are equipped with LED emitter, transmissive, and internal/external ring illumination, providing top illumination, bottom illumination, and three different angled illumination to ensure clear presentation of blurry edges.

Type 4 and TZ high magnification zoom head

Type4 4X~60X TypeTZ1X~X7.5/16X~120X

Type 4 and TZ use Nikon 15X and 120X zoom optical systems, which have higher magnification accuracy and higher numerical aperture (0.46). Type 4 is equipped with LED emitter, transmissive, and circular lighting fixtures,

Provide top illumination, bottom illumination, and 50 degree angled illumination.

TZ is equipped with downsampling, transmission, and dark field illumination for main objective lenses (16~120x), as well as LED downsampling and dark field illumination for auxiliary objective lenses (1~7.5X).

Type A - Wide field zoom head

TypeA0.35X~3.5X

The type uses the Nikon 10X zoom optical system, which has a wide field of view within a low precision range, a long working distance, and a high numerical aperture (0.11),

And it is equipped with LED emitter, transmissive, and circular lighting, providing top and angled illumination light.

8-segment LED inner and outer circular lighting fixture

Type1~3

Types 1, 2, and 3 are equipped with 8-segment LED inner and outer ring lighting fixtures, which can provide optimal lighting conditions and clearly present blurry edges.

You can choose one of the three oblique angles of 37 degrees, 55 degrees, and 75 degrees from any direction of the 8 lighting segments, and can also combine any lighting segment and use any light intensity.

Improve uncertainty

Nikon's new linear encoder ModuRay is equipped with a non-contact reading head, which helps improve accuracy.

specifications

model	VMZ-S6555
XYZ itinerary	650X550X200
*Small reading units	0.1 micron
Tested object * heavy weight	50kg
Measurement accuracy EUX, MPE EUY, MPE	1.2+4L/1000um
EUXY、MPE	2+4L/1000um
Z-axis measurement accuracy (laser autofocus)	1.2+5L/1000um
Camera	Black and white 1/3-inch CCD, color 1/3-inch CCD (optional) The optional color camera can only be used in conjunction with types 1, 2, and A.
The working distance of the objective lens
Types 1, 2, and 3	50mm at a 37 degree angle, 36mm at a 55 degree angle, and 10mm at a 78 degree angle
Type 4	30mm
Type TZ	When using the main objective lens, it is 11mm, and when using the left objective lens, it is 32mm
Type A	73.5mm when not using laser AF, 63mm when using laser AF
Magnification and field of view
Type 1	0.5~7.5X /9.33X7~0.622X0.467mm
Type 2	1~15X /4.67X3.5~0.311X0.233mm
Type 3	2~30X /2.33X1.75~0.155X0.117mm
Type 4	4~60X /1.165X0.875~0.07~0.068
Type TZ	1~120X /4.67X3.5~0.039X0.029mm
Type A	0.35~3.5X /13.3X10~1.33X1mm
Auto focus	Types 1, 2, 3, 4, and TZ are equipped with TTL laser AF and image AF Type A comes standard with image AF, while laser AF is available as an optional option
Illuminator
Types 1, 2, and 3	LED emitter and transmissive lighting fixtures, 8-segment LED inner and outer ring lighting fixtures (inner ring lighting fixtures are angled at 37 degrees, outer ring lighting fixtures are angled at 55 degrees and 78 degrees)
Type A	LED emitter and transmissive lighting fixtures, 8-segment LED ring lighting fixtures with an 18 degree oblique angle
Power supply	AC 100-240V ± 10% 50 or 60HZ
Use current	5A-2.5A
Host size and workbench	1200X1640X1820mm/approximately 665kg
Controller size	190X450X440mm/approximately 15KG
Land occupation (including PCs on the workbench)	2400X2000mm
