8000 series oxygen permeability analyzer

8000 series oxygen permeability analyzer

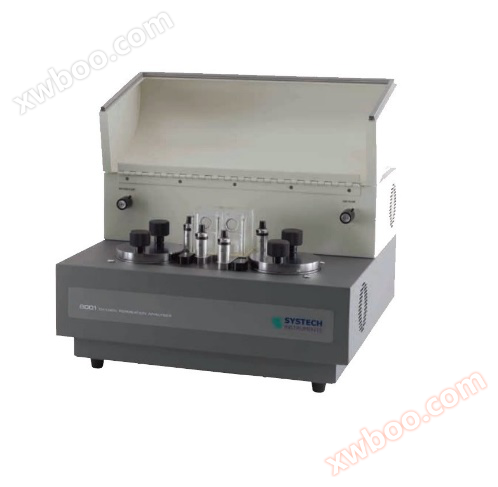

Systech illinois 8001 is a multifunctional and easy-to-use oxygen permeation analyzer equipped with 2 testing chambers for testing films or packaging. To provide the highest quality Coulomb electric oxygen sensor at the lowest replacement cost in the market, this instrument offers extremely fast blowdown downtime and the highest level of accurate readings. This analyzer has the widest measurement range on the market, can be used for research and development of penetration testing, and has the speed required for quality control testing.

The Systech illinois 8001 oxygen permeation analyzer provides precise temperature, humidity, and flow control, providing consistent and reproducible testing conditions. With a wide range of sample temperature and controllable relative humidity, this oxygen permeability tester can provide the fastest transition from wet to dry sample operation.

The expansion module can perform up to twelve oxygen permeation measurements simultaneously to improve testing capabilities.

符合 ASTM D-3985 F2622-08 F-1927 F-1307 ISO 15105-2 DIN 53380 JIS K-7126

Product Specifications

Measurement range: Film 0.008-150000 cc/m2/day

Measurement range: Packaging 0.0004-2000 cc/pack/day

Test temperature range 5 to 50 ° C (41 to 122 ° F)

Controlled RH test drying (0% RH) or RH (20 to 90%)

Calibrate NIST reference films and certification gases

Automatic temperature control

Size: 533H x 533W x 305D millimeters

Weight: 28.1 kilograms

characteristic:

Analysis system traceable to NIST

Can quickly and conveniently perform system validation or validate with standard gases

Wide measurement range and flexible testing range

Control flow, temperature, and humidity to achieve optimal responsiveness and repeatability

Coulomb oxygen sensor enhances analysis accuracy

Intuitive Windows based software

The result of rapid penetration

No need for liquid coolant, catalyst or special gas mixture

For pharmaceutical and drug penetration testing, we can provide software that complies with 21CFR Part 11.

Application:

Barrier film

PET bottle

packaging can

The barrier property of a material refers to the ability of the material to penetrate from one side to the other for a specific permeable object. Common permeation objects include common gases, water vapor, liquids, organic compounds, etc. The permeation process of the same material varies for different permeation objects. Generally, the barrier properties of materials are divided into three categories based on the properties of the permeation objects: barrier properties against inorganic gases (such as oxygen permeability, nitrogen permeability, carbon dioxide permeability), barrier properties against water vapor (moisture permeability), and barrier properties against organic compounds.
