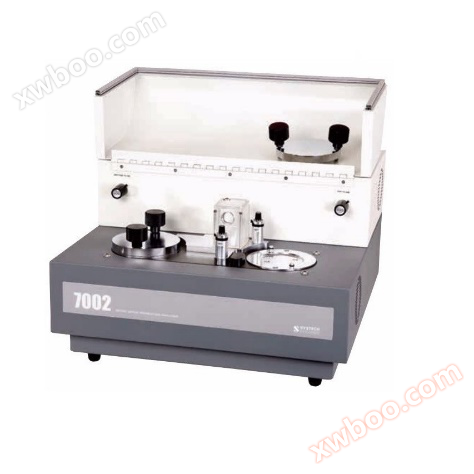

7000 series water vapor permeability analyzer

7000 series water vapor permeability analyzer

Systech illinois7000 water vapor analyzerThe series uses sensitive and stable P2O5 sensors for measuring water vapor transmission. These water vapor analyzers provide a wide measurement range of 0.002-1000 g/m2/day and precise temperature, humidity, and flow control. Provide accurate and reproducible results for the research and development testing of water permeability (wvtr) of current and newly formulated packaging film materials, and provide rapid testing for quality control.

All Systech Illinois analyzers are NIST certified. Including the use of NIST certified gases and NIST traceable thin films to validate analytical performance.

All of our water vapor permeation analyzers are equipped with a validation membrane and a spare P2O5 sensor.

符合： ASTM F-1249 * ISO 15105-2 ISO 15106-3 DIN 53122-2

The Systech Illinois 7000 analyzer complies with ASTM standard F-1249, except for sensor technology.

Product Specifications

Industry: Packaging

Gas: Water Vapor

Application: Penetration

Measurement range: 7001 milliliters 0.002-10 grams per square meter per day, mask 0.02-70 grams per square meter per day.

Measurement range: 7000 without mask 0.002-70 grams/square meter/day, mask 0.02-1000 grams/square meter/day

Test temperature range: 5 to 50 ° C (41 to 122 ° F)

Test RH range: 20 to 90% RH

Size: 533 x 533 x 305 (mm)

Weight: 23.6 kilograms

characteristic:

Analyze the traceability of system manufacturing to NIST

Gas or calibration membrane for system validation and certification, fast and convenient

Over 25 years of experience in specialized P2O5 sensors

Absolute humidity measurement - no calibration required

Wide measurement range and flexible research level

Control flow, temperature, and humidity to achieve optimal responsiveness and repeatability

Intuitive Windows based software

No need for liquid coolant, catalyst or special gas mixture

Application:

Barrier film

PET bottle

packing box

The barrier property of a material refers to the ability of the material to penetrate from one side to the other for a specific permeable object. Common permeation objects include common gases, water vapor, liquids, organic compounds, etc. The permeation process of the same material varies for different permeation objects. Generally, the barrier properties of materials are divided into three categories based on the properties of the permeation objects: barrier properties against inorganic gases (such as oxygen permeability, nitrogen permeability, carbon dioxide permeability), barrier properties against water vapor (moisture permeability), and barrier properties against organic compounds.
