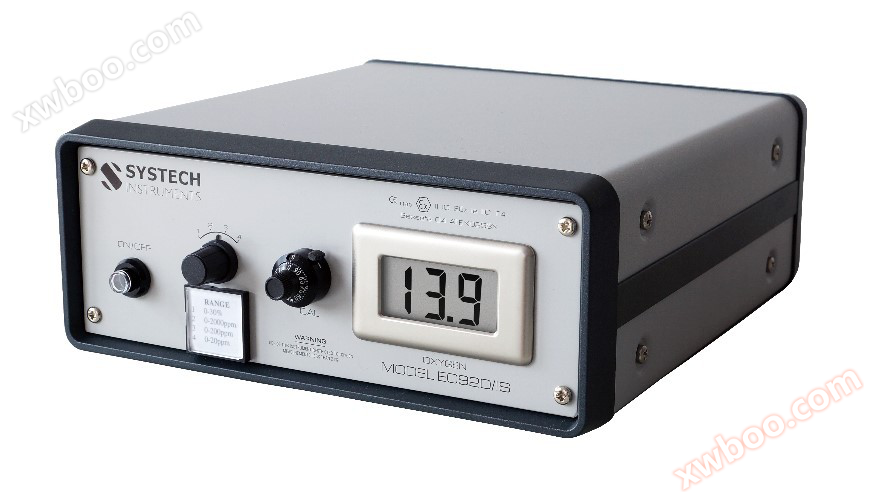

EC92DIS portable explosion-proof oxygen analyzer

EC92DIS portable explosion-proof oxygen analyzer

Xishidai Instruments - Suitable testing instruments from the UK and the US!

SYSTECH SYSTEMS is a British manufacturer specializing in providing quality control and assurance equipment for gas measurement. SYSTECH SYSTEMS has nearly 30 years of experience in sensor research and development, production, and application. It is a global leader in technology and quality in the field of trace oxygen and trace water detection. SYSTECH SYSTEMS is headquartered in Oxford, UK, and has a subsidiary factory in the United States, ILLINOIS SYSTEMS. It also has two wholly-owned subsidiaries in Thailand and SYSTECH SYSTEMS China, and has established an agent sales network in more than 50 countries and regions around the world. Its products are widely used in industries such as packaging materials, food, pharmaceuticals, chemicals, steel, petrochemicals, electronics, gas manufacturing, aerospace, etc.

Portable oxygen analyzer for measuring oxygen content in hazardous areas

The EC92DIS portable oxygen analyzer is suitable for hazardous areas and has obtained EEx ia IIc T4- Zone 0 (ATEX) explosion-proof certification. It can be used to measure oxygen content as low as 1ppm and as a percentage, suitable for most industrial gases and atmospheres. Fuel cell sensors do not require daily maintenance and are highly explosion-proof. They can be calibrated using air or standard gases.

Specification Overview:

Gas: Oxygen

Application: Intrinsic Safety

Range: ppm%

Technology: Electrochemical

Features:

• Unique fast blowing system

• Easy calibration

• Maintenance free fuel pool

• Intrinsic safety certification

• Optional ppm or% content

• Use 2 PP3 batteries

Application:

• Offshore drilling

• Chemical plant

• Petrochemical plant

• Oxygen purity testing

• Pharmaceutical factories

• Hydrogen plant

• Refinery

Inert gas atmosphere and cylinder gas detection in hazardous areas

Application: Intrinsic Safety

Range: ppm%

Technology: Electrochemical

Powered by 2 PP3 batteries, built-in

Explosion proof grade IP40

ATEX Ex II 1G EEX ia IIC T4 certification

The barrier property of a material refers to the ability of the material to penetrate from one side to the other for a specific permeable object. Common permeation objects include common gases, water vapor, liquids, organic compounds, etc. The permeation process of the same material varies for different permeation objects. Generally, the barrier properties of materials are divided into three categories based on the properties of the permeation objects: barrier properties against inorganic gases (such as oxygen permeability, nitrogen permeability, carbon dioxide permeability), barrier properties against water vapor (moisture permeability), and barrier properties against organic compounds.
