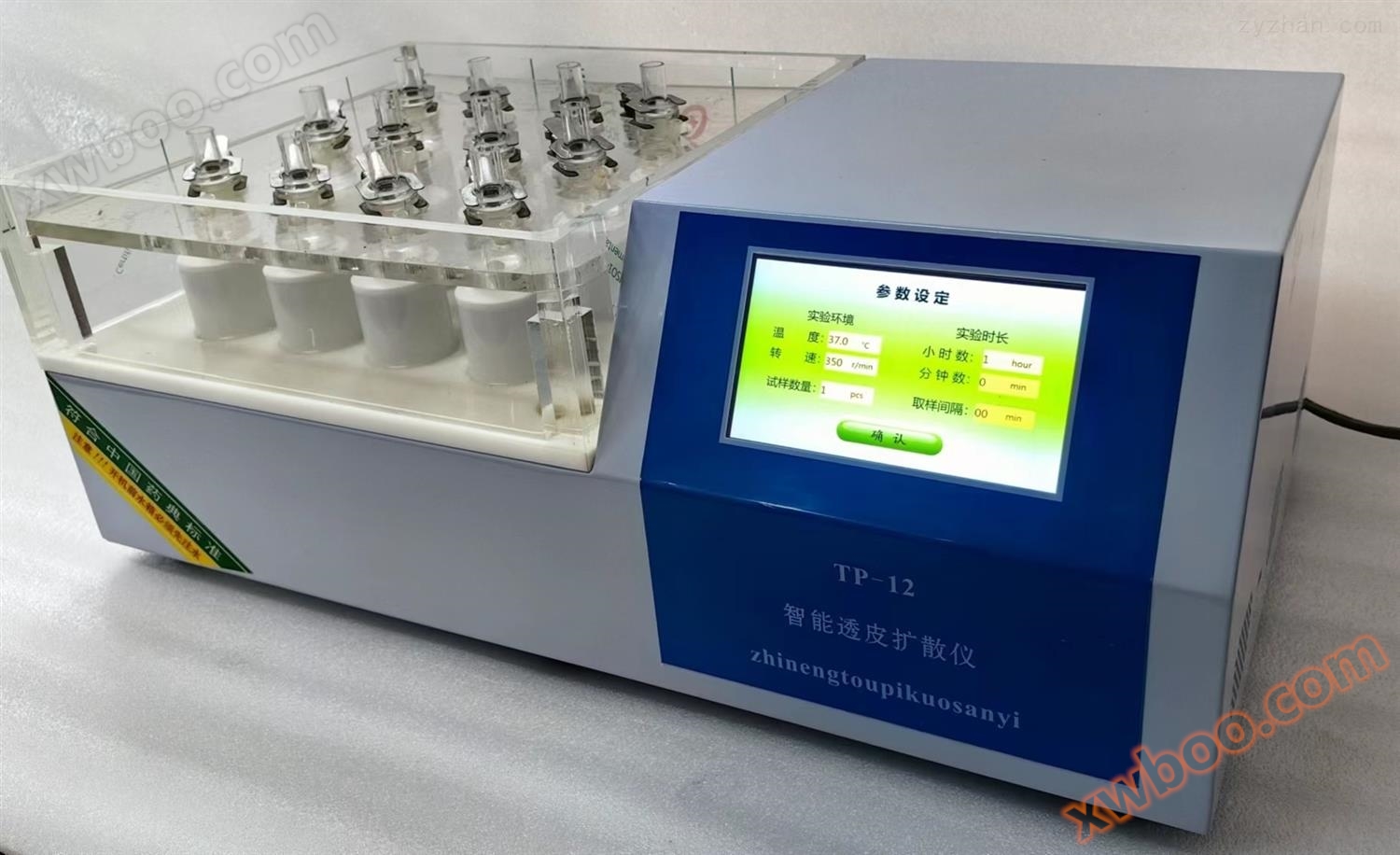

TP-12 Intelligent Transdermal Diffuser

TP-12 Intelligent Transdermal DiffuserAdopting microcomputer measurement and control, touch LCD screen display, it can synchronously display the working status of the instrument such as heating, speed, timing, etc. in real time, with real-time data recording function, equipped with USB interface, realizing experimental data export. DC speed motor, high-precision temperature sensor, and recyclable water bath constant temperature system. Experimenters can calibrate the temperature themselves.

This instrument adopts touch screen operation, which is simple, flexible, fully functional, and accurate in data. technical indicatorsCompliant with relevant national standards in the pharmaceutical industry.

TP-12 Intelligent Transdermal DiffuserTechnical Specifications
(1) Number of diffusion cups: 12 (vertical)

(2) Acceptable pool volume: 15ml (other 17ml, 10ml, 7ml, and horizontal 5ml are optional)

(3) Temperature control range: Room temperature -40 ℃ (4-10 ℃ when equipped with an external refrigeration device)

(4) Temperature control accuracy: ± 0.3 ℃

(5) Mixing speed range: 100-1000 rpm

(6) Speed accuracy: ± 5%

(7) Sampling period: 1-12

(8) Timing range: 0-99 hours 0-59 minutes

(9) Temperature calibration: can be calibrated in real-time

(10) Experimental data storage and export: built-in storage records, USB drive output
