Special price for imported Rockwell hardness tester

NegotiableUpdate on 02/06

Model

Nature of the Manufacturer: Producers

Product Category

Place of Origin

Online Consult

Overview

Product Introduction: Italian imported economical hardness tester

Product Details

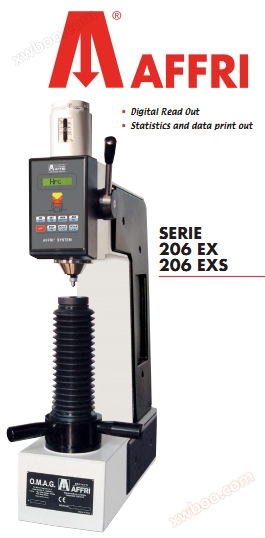

Rockwell hardness tester Italy AFFRI 206EX/EXS

A hardness tester without weights and levers!

Coaxial electronic loading, coaxial depth measurement!

Are you still using a hardness tester that requires leveling? Are you still cutting samples for hardness testing? Are you still being cautious during the hardness test, worried about instability, non leveling, and vibration interference?

AFFRI， No need to adjust the level, no need to worry about sample deformation (spring type workpieces), no need to worry about environmental vibration, no need to worry about frame deformation, all possible interferences become irrelevant here, hardness testing becomes simple, efficient, and accurate!

Usage: Rotate the base handwheel to bring the workpiece closer to the pressure head, and apply a load by turning the machine head wrench
Loading: The load is directly loaded axially and controlled by a built-in electronic load cell, with accuracy in accordance with ISO-JIS standards
Operation: Anyone can easily use it without training

Technical Parameter	206EX	206EXS
Preload	(10kgf)98.07N	(3kgf)29.4N
Test loading	588-980-1471N Rockwell (60-100-150kgf) 98.07-588N Vickers (10-60kgf)	147-294-441N surface Rockwell (15-30-45kgf) 29-147-294N Vickers (3-15-30kgf)
MODE	hand movement
Feasibility testing	Roche: HRA; HRB; HRC; HRD; HRE; HRF; HRG; HRH; HRK Vickers: VH10; HV60; HV100 (tooth shaped) Brinell (as needed): HB2.5/62.5; HB2.5/187.5; HB5/125 HBT 2.5/62.5; HBT 2.5/187.5; HBT5/125	Surface Rockwell HRA; HRB; HRC; HRD; HRE; HRF; HRG; HRH; HRK Vickers: VH10; VH60; HV100
Read value	Roche 9	Roche 6
Reading accuracy	0.1HR(0.1HB)	0.2HR(0.2HB)
accuracy	Following EN-ISO 6508-2/6506-2/JIS standards

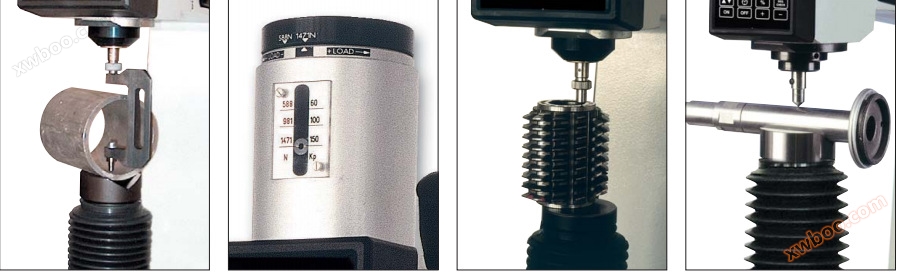

operate	Even when not in a horizontal position, tilted, or in a vibrating environment, high accuracy is maintained.
temperature range	5 degrees to 50 degrees
Test height range	215mm
Measurement depth range	190mm
Measuring head diameter	60mm
Maximum load of test piece	1000kg
power supply	Communication 100-240V 50-60HZ
Application scope	All metals: cast iron, steel, tempered steel, cast iron, copper, metal alloys, aluminum exceeding 0.6mm, plastics, soft and hard rubber, etc	Nitriding treatment, carburizing treatment, welding surface not exceeding 0.6mm,
Net weight/Gross weight	65/85kg
package	3760102

The perfect loading closed-loop control system AFFRI SYSTEM ensures extremely high loading stability!
