Powder density tester

Product Introduction:

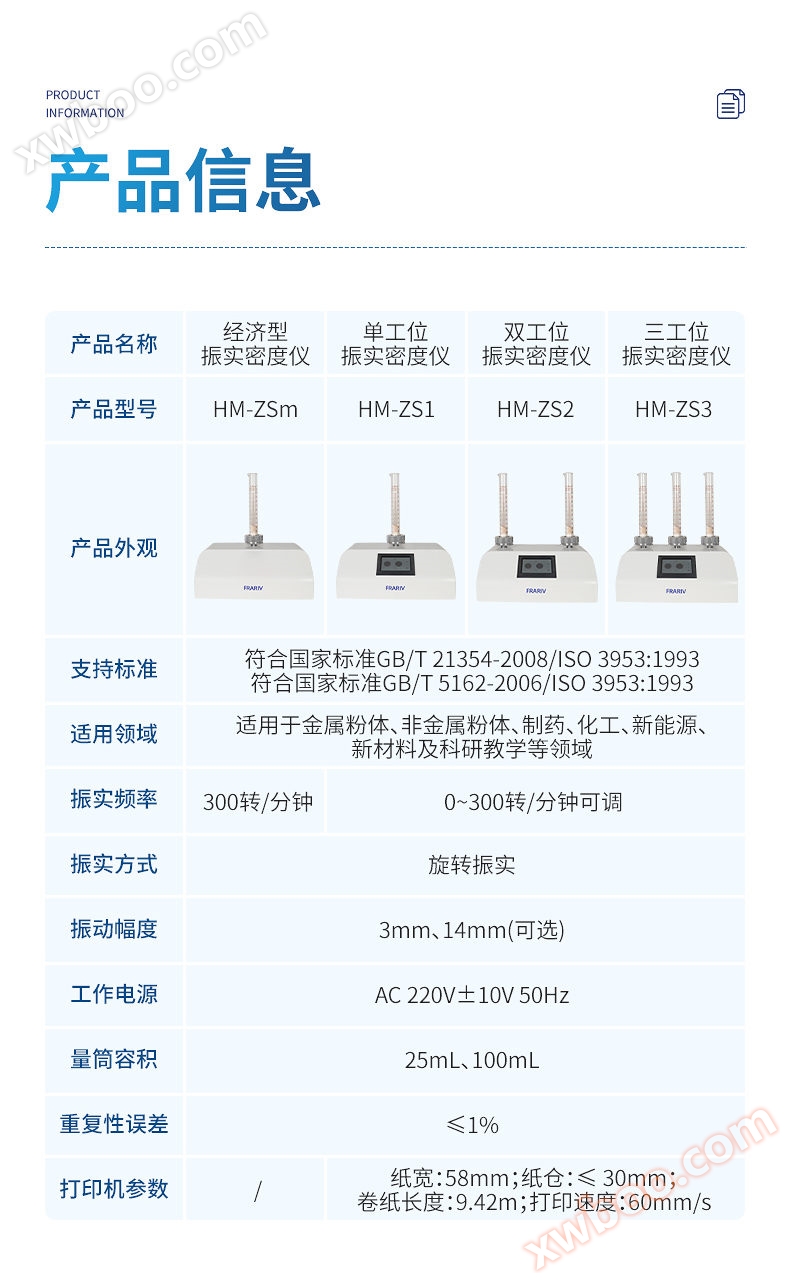

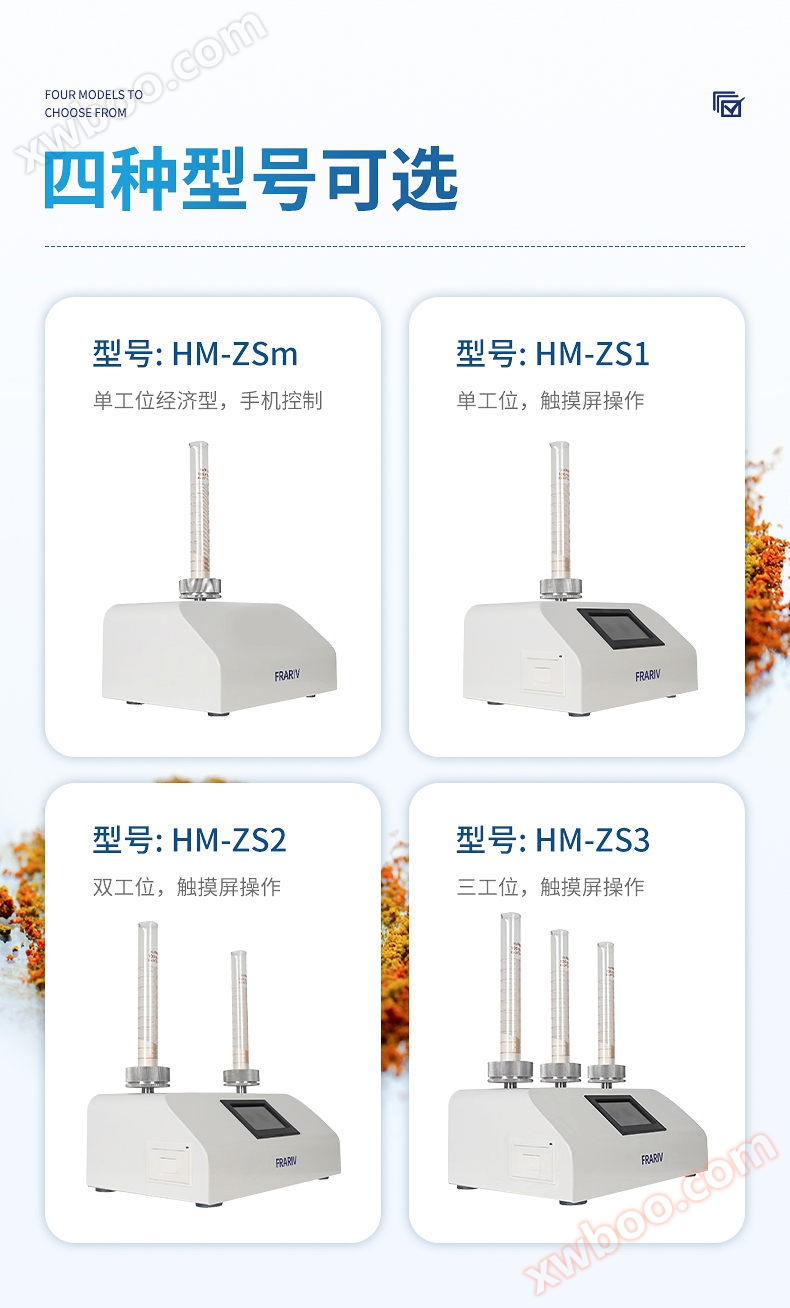

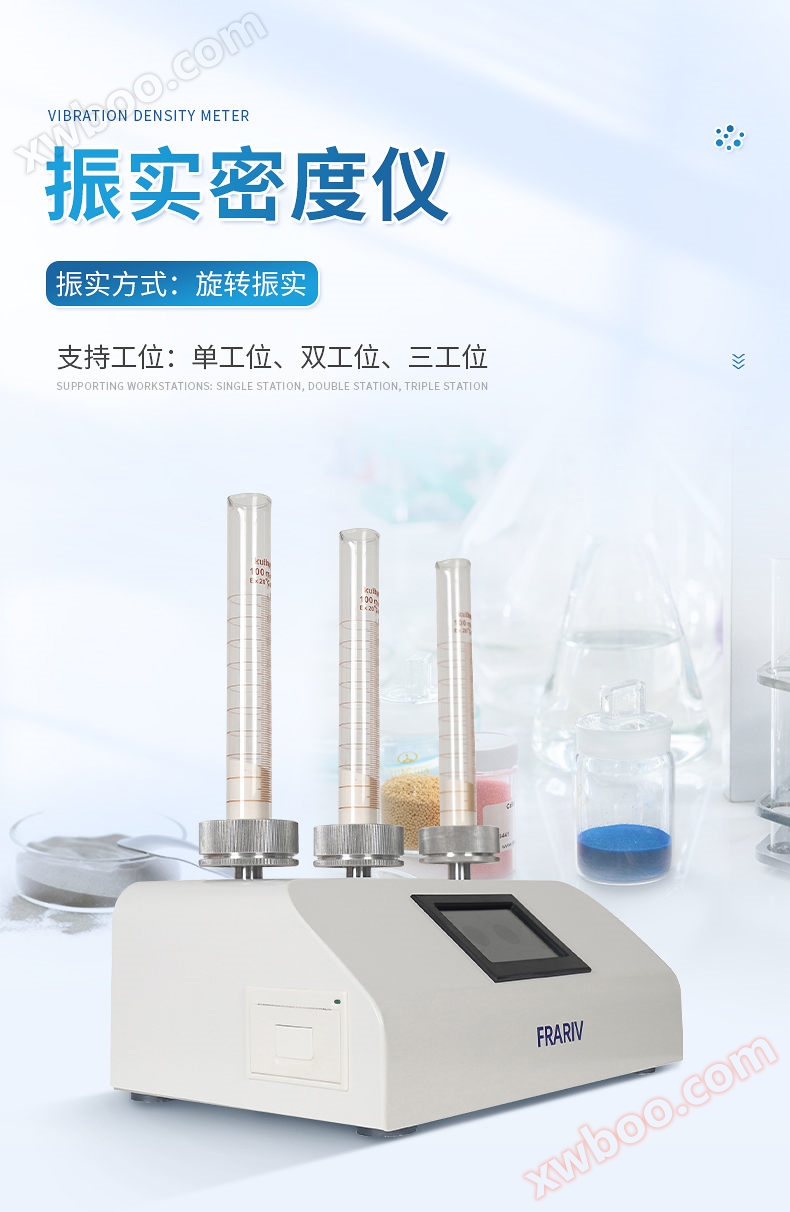

Supporting workstations: single workstation, dual workstation, triple workstation

Model: HM-ZS1, HM-ZS2, HM-ZS3

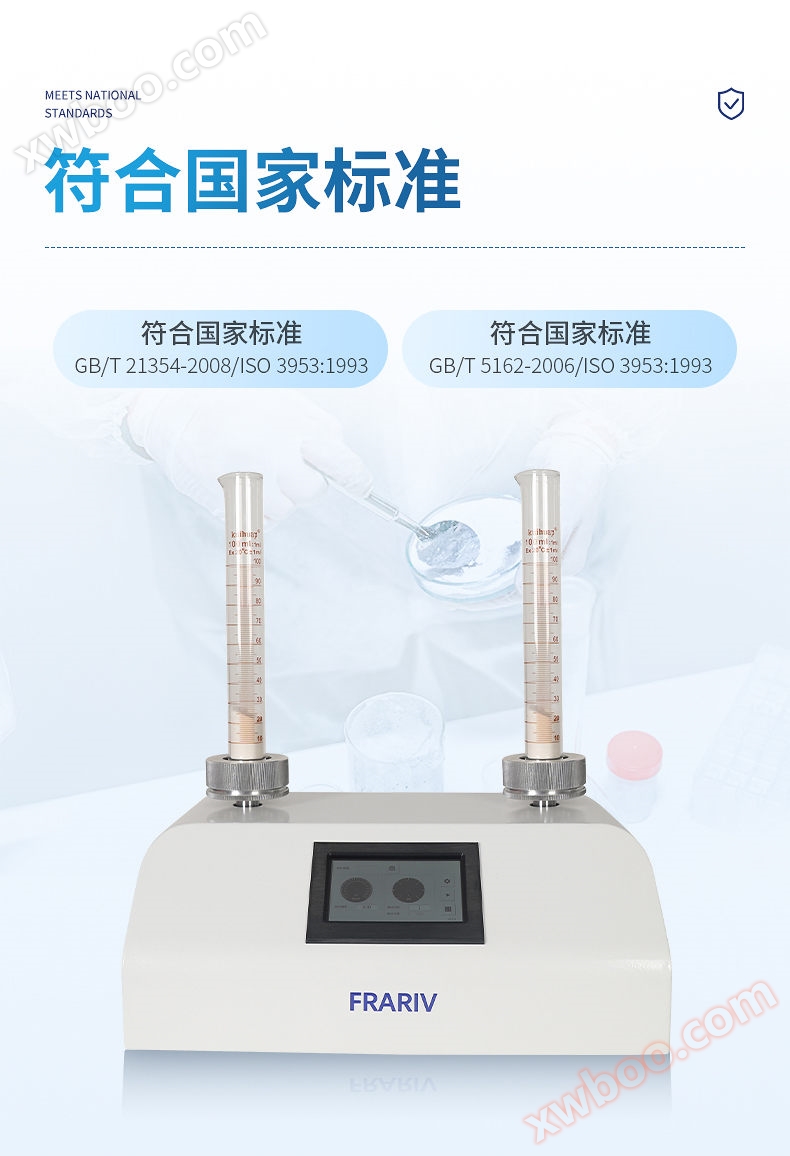

Supporting standards: comply with national standard GB/T 21354-2008/ISO 3953:1993;

Compliant with national standard GB/T 5162-2006/ISO 3953:1993

Applicable fields: Suitable for metal powder, non-metal powder, pharmaceuticals, chemical industry, new energy, new materials, scientific research and teaching, and other fields

Vibration frequency: adjustable from 0 to 300 revolutions per minute

Vibration compaction method: rotational vibration compaction

Vibration amplitude: 3mm, 14mm (optional)

Working power supply: AC220V ± 10V 50Hz

Measuring cylinder volume: 25mL, 100mL

Repetitive error: ≤ 1%

Technical Features:

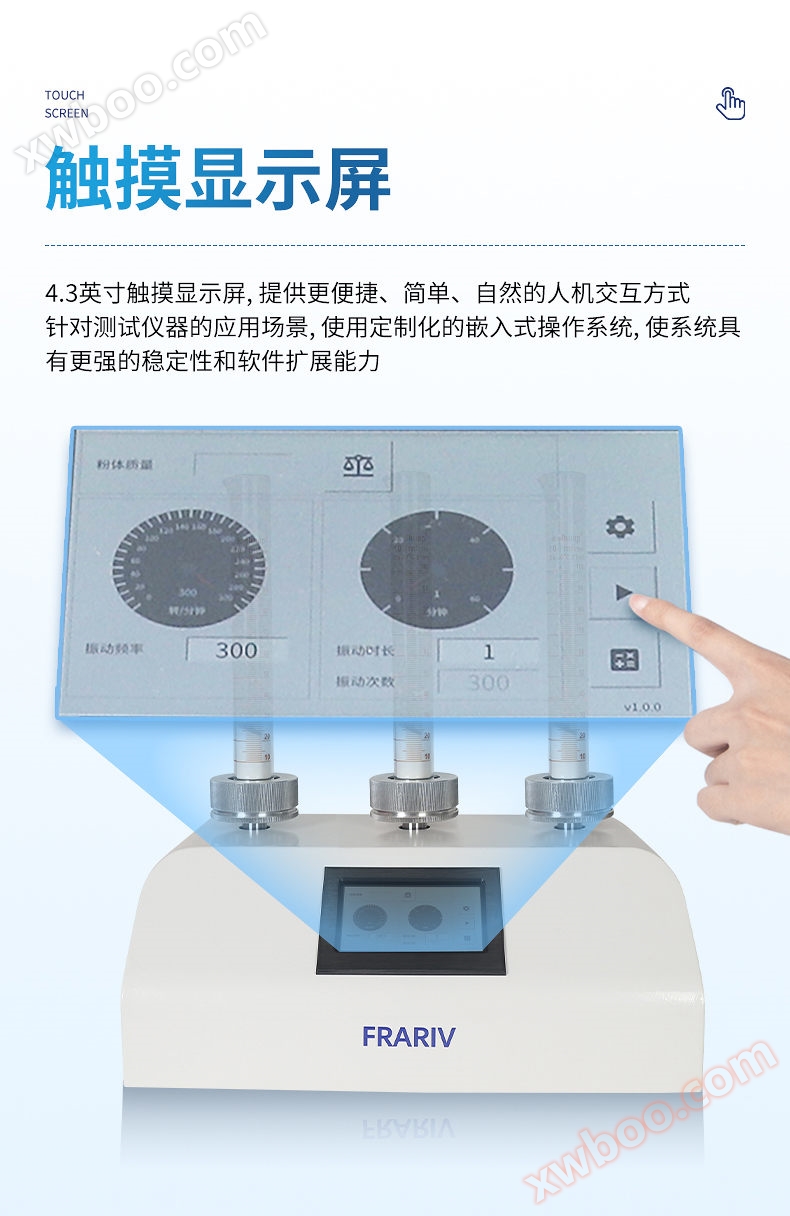

1. 4.3-inch touch screen display, providing a more convenient, simple, and natural way of human-computer interaction;

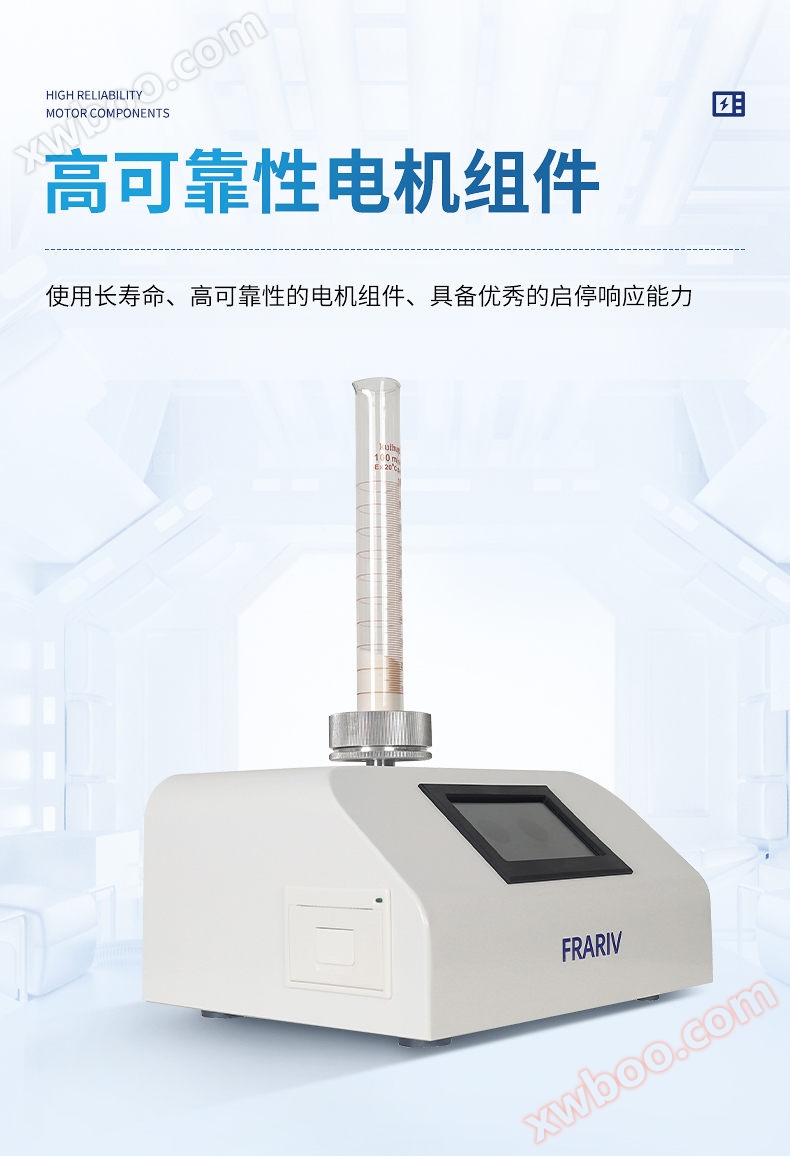

2. Use motor components with long lifespan and high reliability, and have excellent start stop response capabilities;

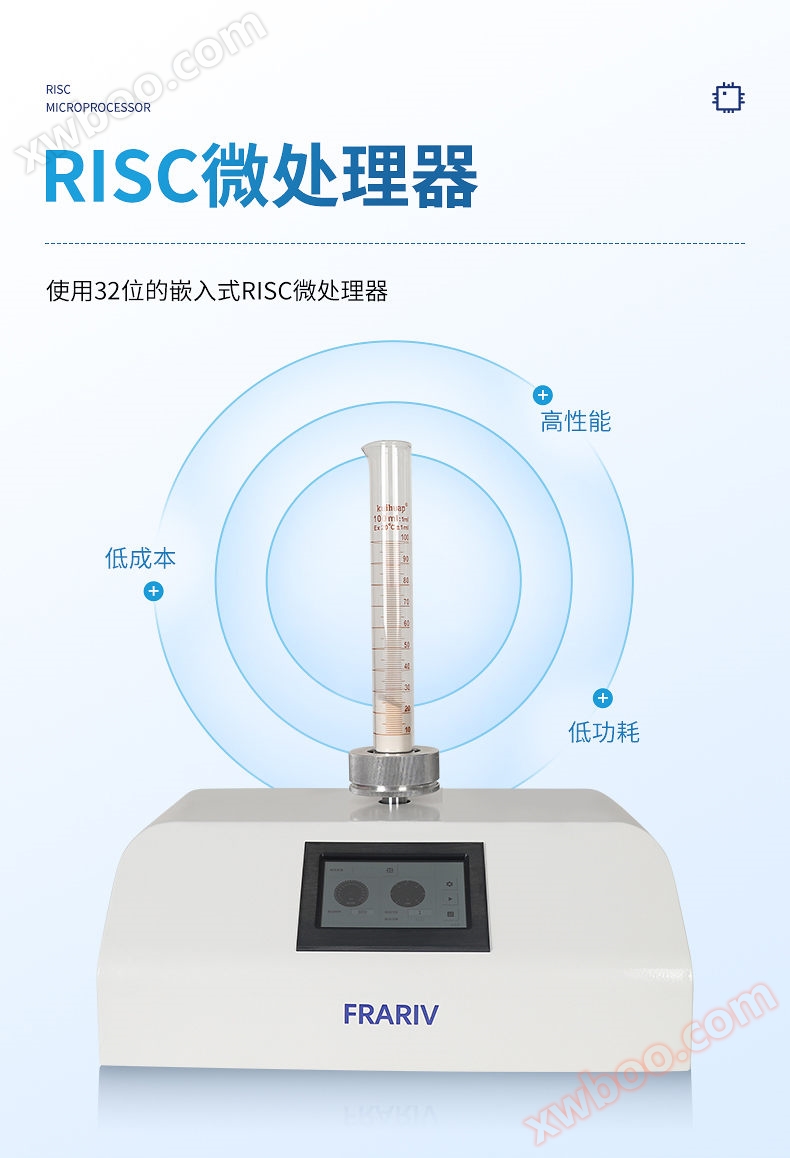

3. Using 32-bit embedded RISC microprocessors, which have the characteristics of low cost, high performance, and low power consumption;

4. For the application scenarios of testing instruments, use customized embedded operating systems to enhance the system's stability and software scalability;

5. Adopting a lightweight, resource efficient, high-performance, highly reliable, configurable, and aesthetically pleasing GUI (Human Computer Interaction Interface) has improved the user experience level;

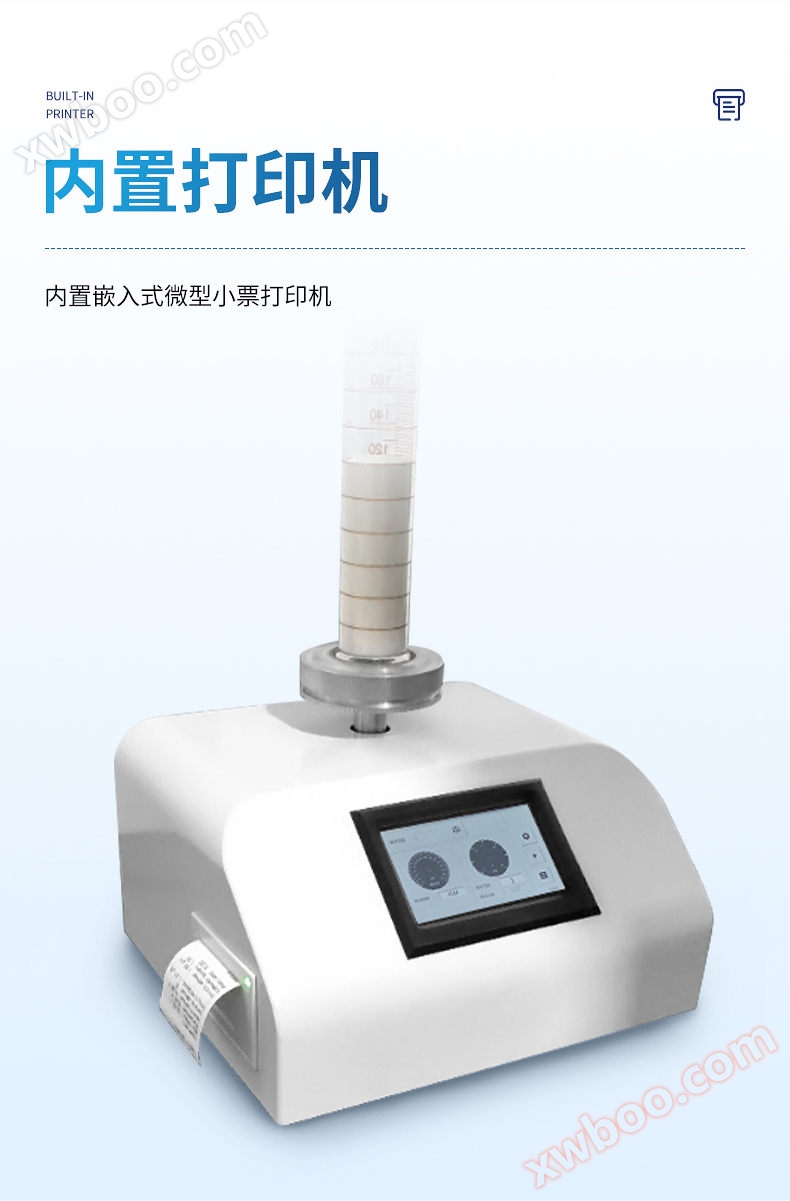

6. Built in embedded micro receipt printer;

7. The calculation result is accurate to 3 decimal places;

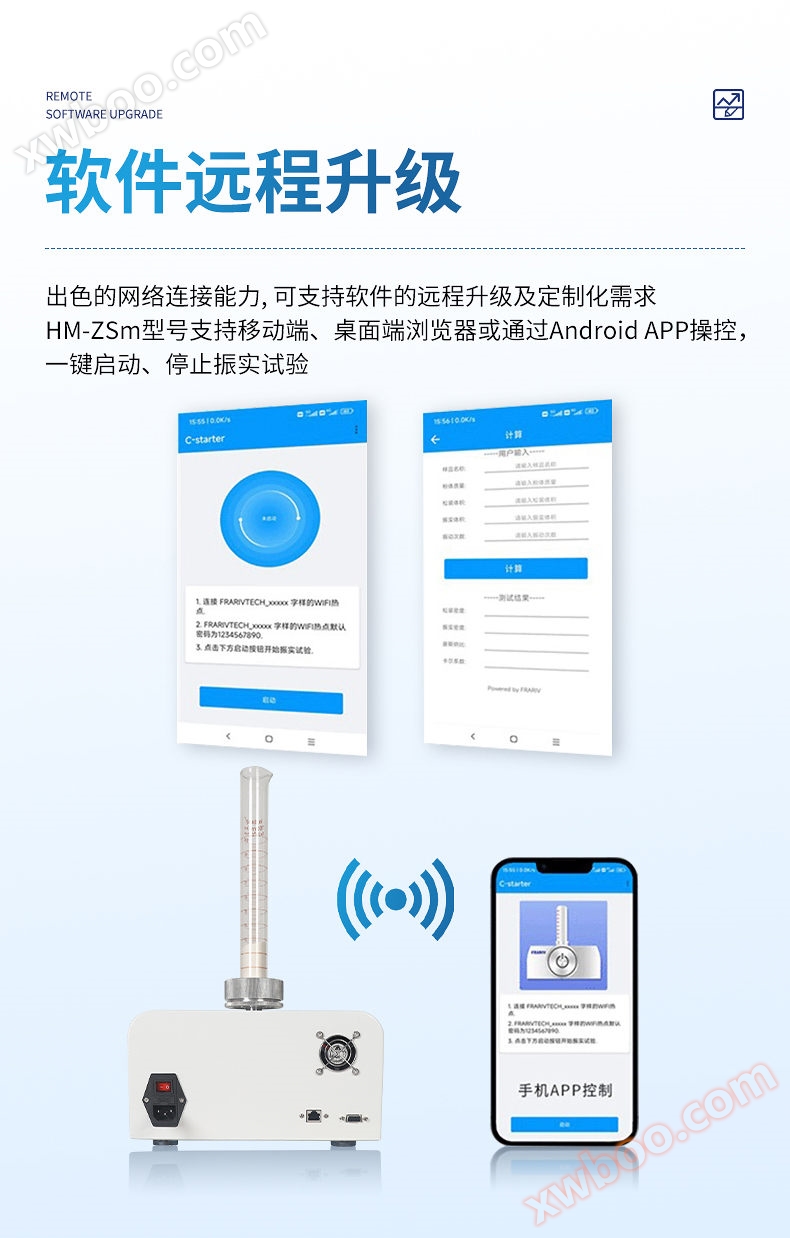

8. Excellent network connectivity, capable of supporting remote software upgrades and customized requirements;

9. Support the generation and download of electronic reports, and support both Excel and PDF formats;

10. The instrument has a sturdy structure, beautiful appearance, and easy operation.

Built in printer parameters:

Paper width: 58mm; paper bin: ≤ 30mm; roll paper length: 9.42m; printing speed: 60mm/s
