Product Name:Explosion proof filling lineFully automatic liquid linear filling production line

Product Introduction:

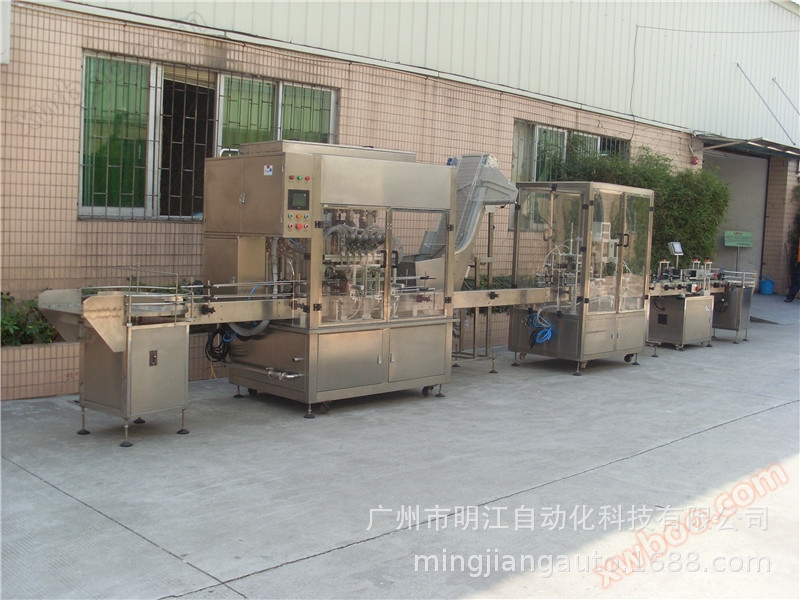

The fully automatic liquid linear filling production line is composed of6Head filling machine, automatic double head capping machine, automatic capping machine, bottle feeding machine, packing conveyor belt, mainly suitable for industries such as medicine, food, cosmetics, etc

Technical parameters:

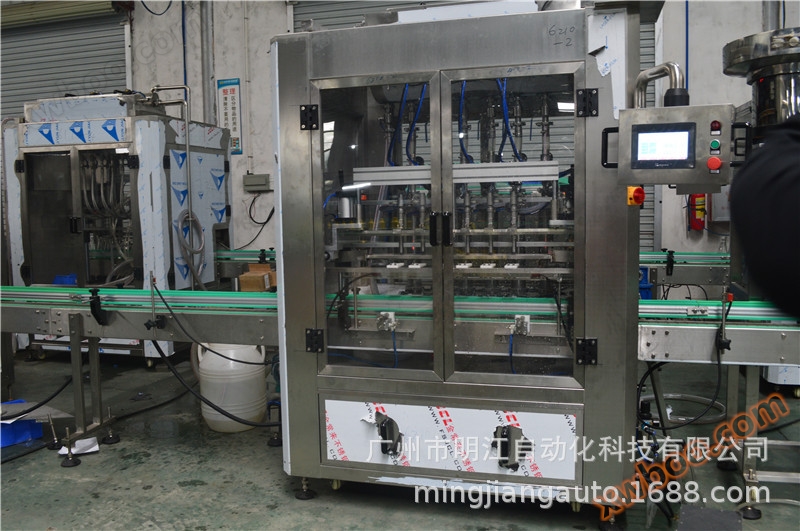

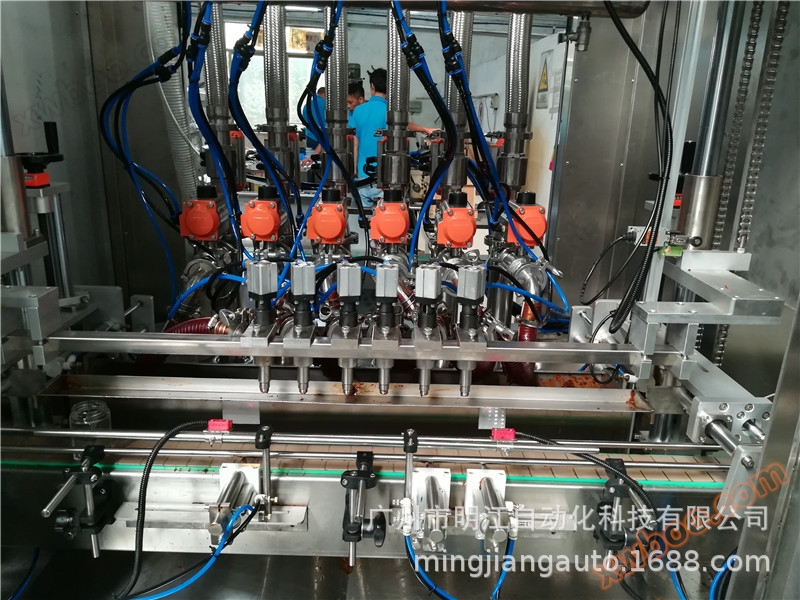

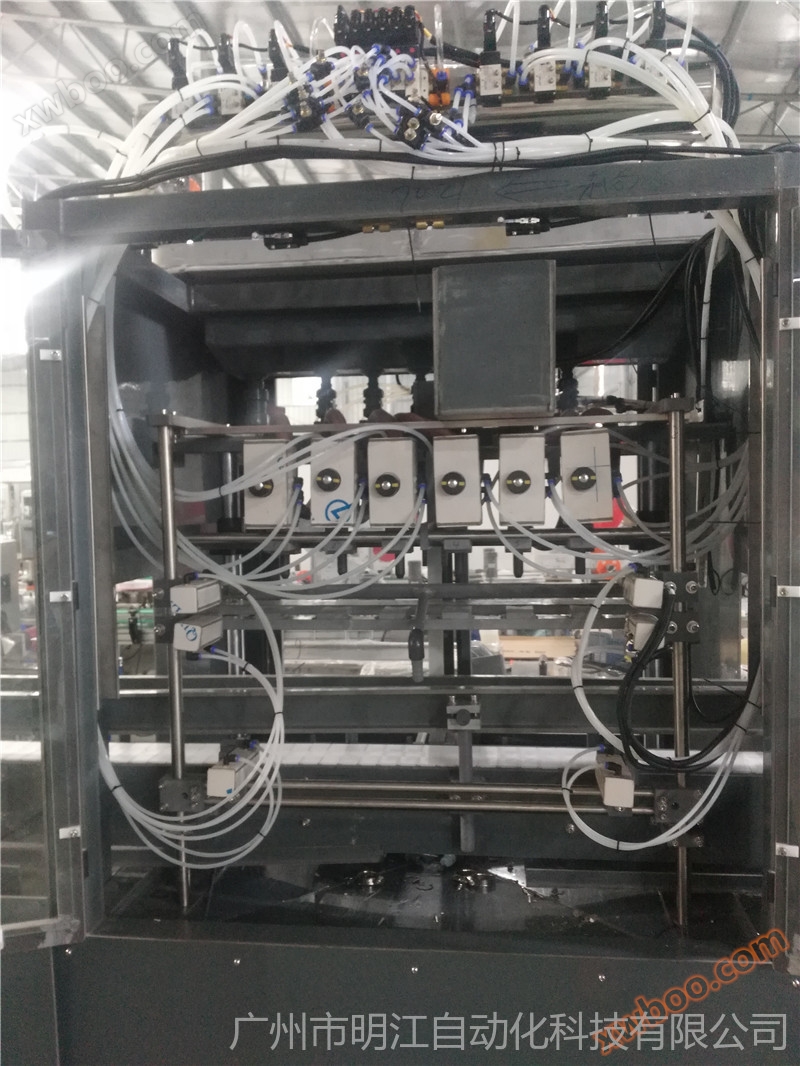

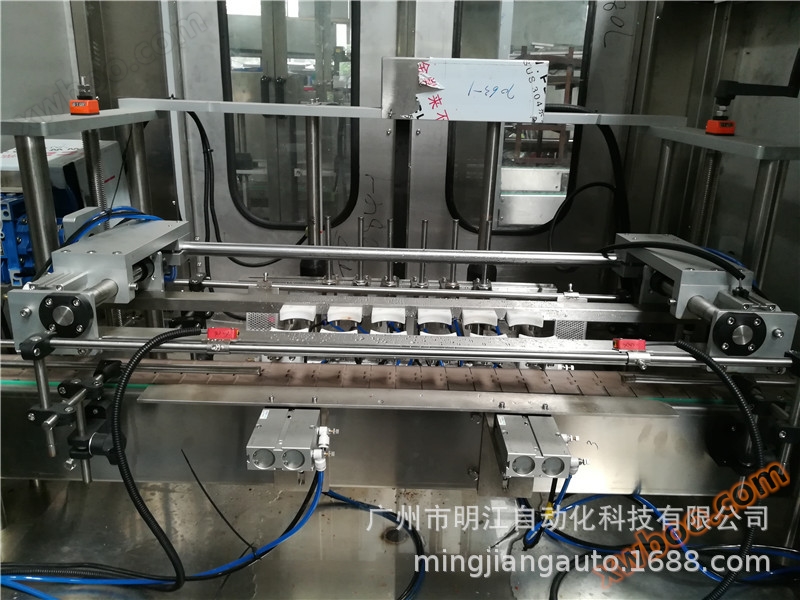

6-head filling machine (technical parameters)

Quantity of filling heads:6

Filling capacity: arbitrary

Filling form: gravity direct current filling (using Saigang chain belt for conveyor belt)

Theoretical filling speed:60-80bottle/Minutes（45Milliliters)

Filling accuracy:±2Milliliters（45Milliliters)

Material: The filling rack is made of stainless steel, and the part in contact with the material is made of stainless steel

Conveyor speed:5-15rice/minute

Belt width:82millimeter

Conveyor belt:3Misai steel chain plate

Ground clearance height of conveyor belt:750Millimeter ±20millimeter

Whole machine power:1000W/220VSingle phase communication

Program Control: ImportPLCCooperate with touch screen human-machine interface

Valve material:316stainless steel

Drive motor:370WMechanical speed regulation

Capacity of material tank:100L

Workbench width:20centimeter

Gas source:0.5-0.8MPa

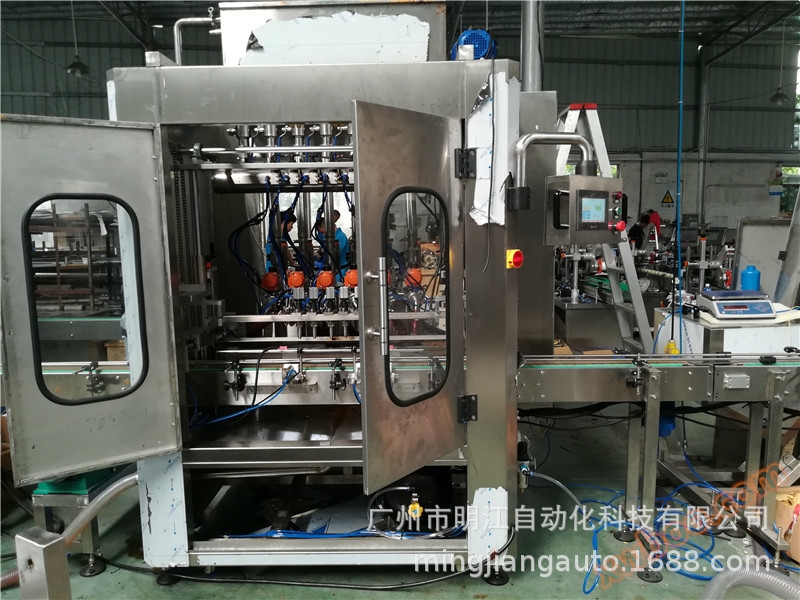

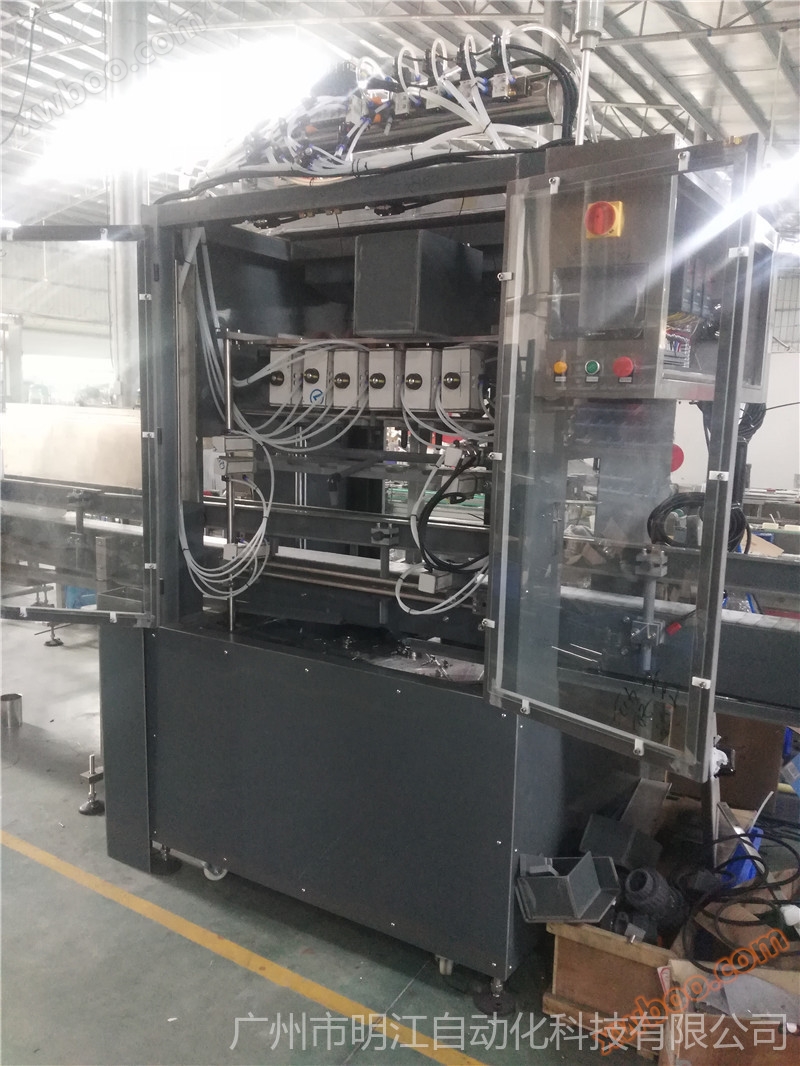

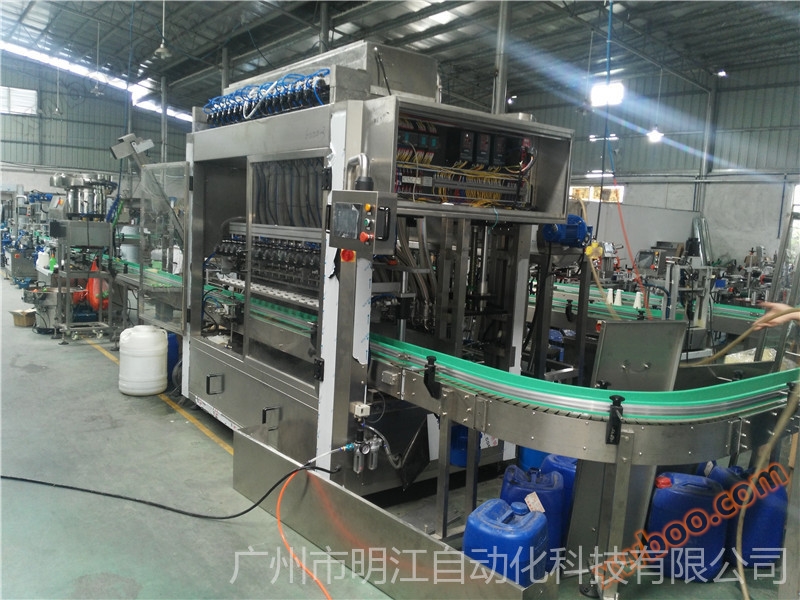

Model: Multi head filling machine

Filling form: gravity flow type

Speed: 20-60 bottles/minute

Error: ±1%

Material: Stainless steel

Air pressure: 0.5-0.8Mpa

Drive motor: 750W variable frequency speed regulation

Conveyor belt speed: 5-15m/min

Belt width: 82mm

Conveyor belt: POM chain strip

Program control: PLC+human-machine

Valve material: 304 stainless steel

Sink capacity: 300L

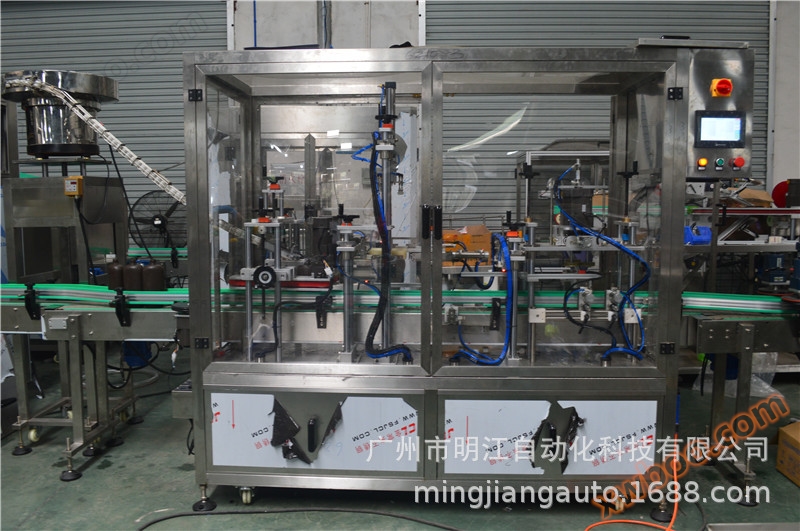

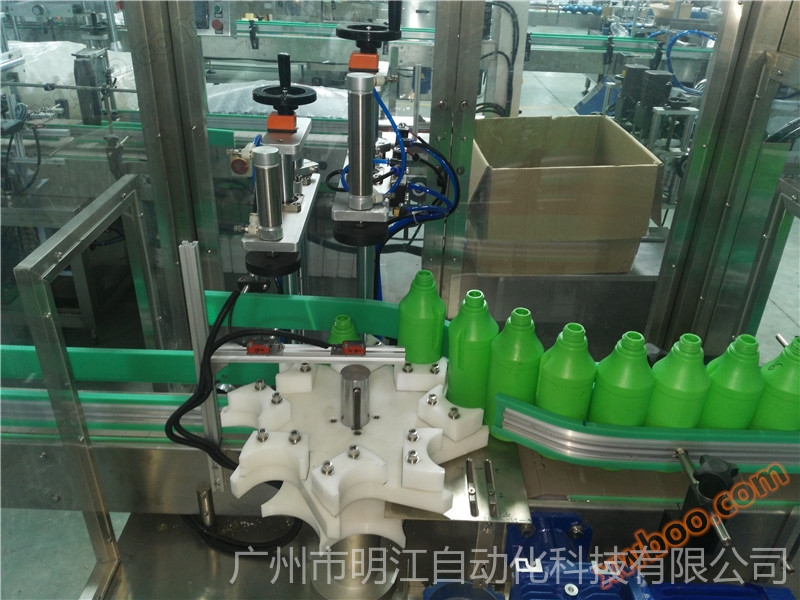

Model: Linear Capping Machine

Performance: greater than 80 bottles/minute

Voltage: 220v/50hz

Power: 2000w

Air pressure: 0.5-0.8Mpa

Drive motor: 550W variable frequency speed regulation

Conveyor belt speed: 5-15m/min

Belt width: 82mm

Conveyor belt: POM chain strip

Packing conveyor belt (technical parameters)

Conveyor belt material: Saigang chain plate

Total length:2rice

Conveyor belt length:1.7rice

Conveyor width:254millimeter

Ground clearance height of conveyor belt:750Millimeter ±20millimeter

Workbench width:20Centimeters (with workbench strap)40Millimeter high edge

Rated voltage:220V/50Hz

Whole machine power:150W

Drive motor:140WCommunication speed regulation

Conveyor speed:5-15rice/minute

(The above are standard model technical parameters. Other special requirements and functions can be customized!)

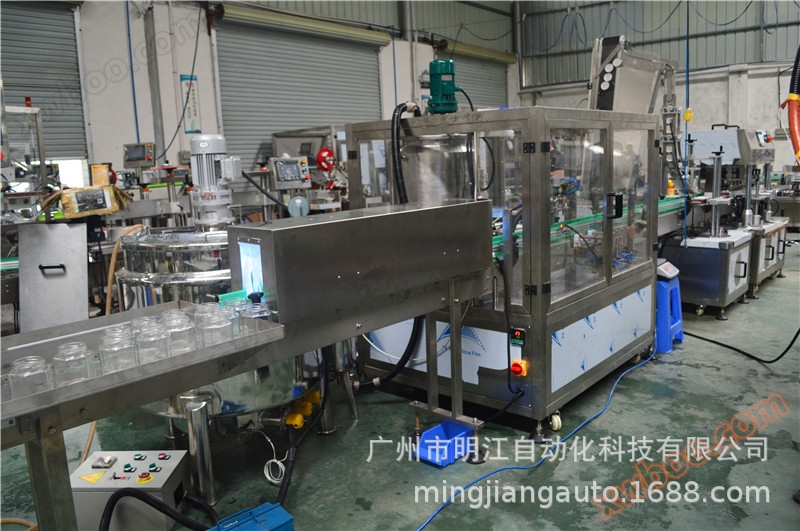

Automatic bottle washing machine

Technical parameters:

Adapt to bottle diameter: according to your company's sample

Bottle delivery method: cage type bottle delivery and washing

Bottle washing method: First rinse with water, then blow dry with air.

Production capacity: 20-60 bottles/minute

Rated voltage: 380V three-phase/50Hz

Overall power: 1.5KW

Bottle flushing medium: filtered water, disposable water, sterile compressed air.

Program control: imported PLC+touch screen human-machine interface;

Specific requirements and specific quotations,Accurate priceBased on the quotation provided by the sales engineer
