Matrix single channel liquid analyzer

Product description

The matrix single channel liquid analyzer is a high-precision, fast liquid separation speed, flexible and reliable liquid separation instrument. The appearance design is compact and simple, the human-machine interface is easy to operate, and it has multiple functions such as cleaning, suction, oscillation and mixing, which can be applied to experimental operations in various fields.

Product Features

1. Appearance: The instrument is designed to be compact, small and easy to use, with desktop operation and small space occupation.

2. Flexible liquid separation: Different volumes can be divided into any hole of any orifice plate.

3. Separation pipeline: The separation management component is easy to disassemble, disinfect, replace, etc.

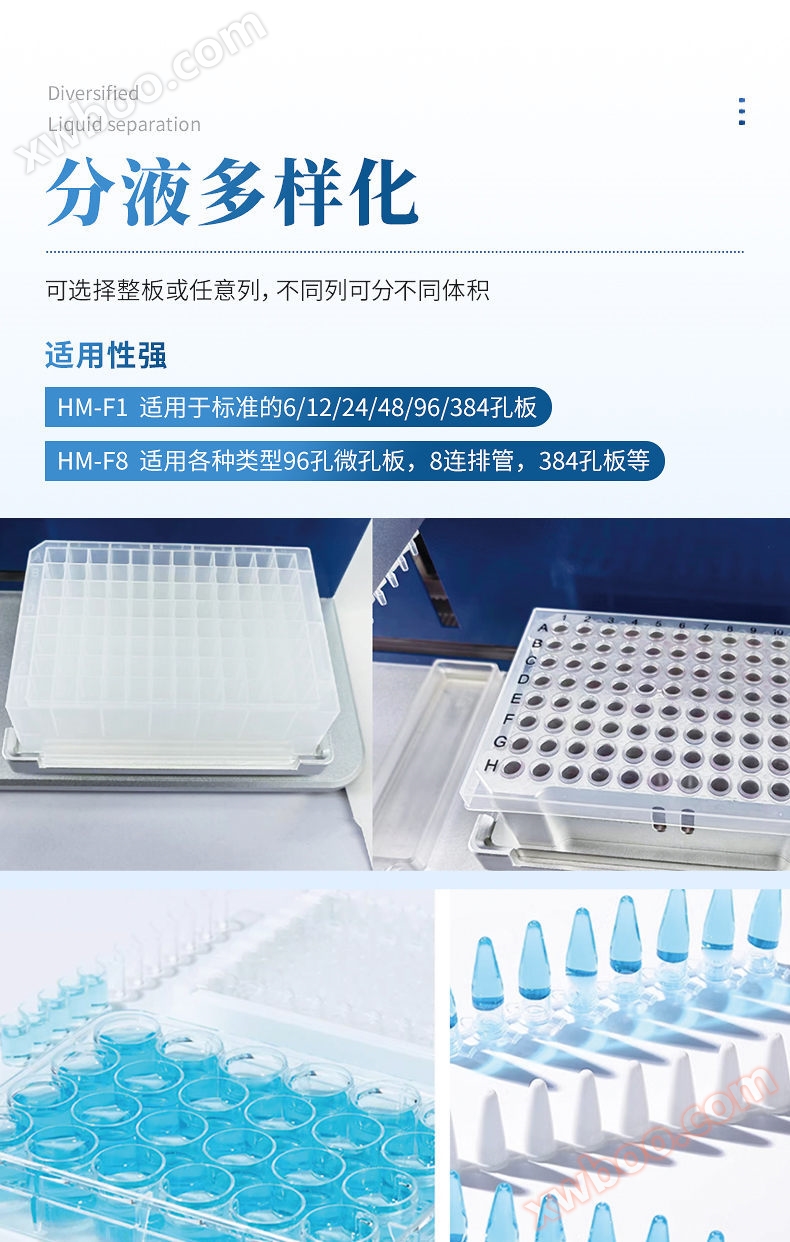

4. Strong applicability: Suitable for standard 6/12/24/48/96/384 well plates.

5. Operating interface: 7-inch color touch screen, intuitive and easy to operate human-machine interface.

6. Strong functionality: It has multiple functions such as cleaning, suction, oscillation and mixing, to meet different experimental needs.

7. Waste liquid treatment: There is a flexible waste liquid tank for taking and placing waste liquid, and it can also be directly discharged to easily solve the problem of waste liquid.

Technical Specifications

Separation volume: 1-9999 μ L (1 μ L increment)

Separation height: can automatically adjust the separation height of different plate types

Liquid separation module: a detachable and replaceable single channel liquid separation pipeline component

Liquid separation speed: The required speed can be set by oneself

Data writing: can be manually entered/imported into a table using a USB drive

Liquid separation accuracy: 5 μ L ≤ 10%; 10μL≤5%; 20μL≤3%; >50 μL:≤2%

Liquid separation plate position: 1

Auxiliary function: With one click cleaning and suction function

Oscillatory function: It has an oscillatory mixing function, which facilitates mixing after liquid separation

Counting function: It has the function of remembering the number of liquid separation times and displaying the number of liquid separation times in real time

Operating voltage: 220V, 50Hz

Appearance dimensions: length 348mm * width 292mm * height 225mm
