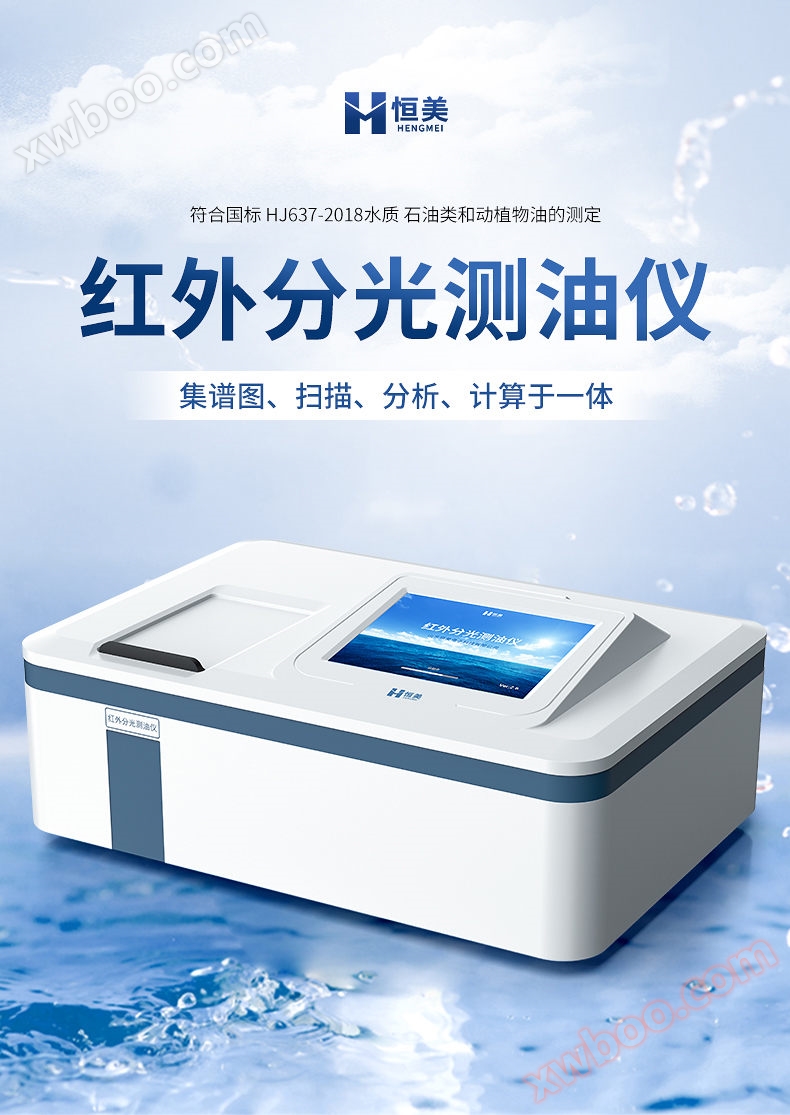

Infrared spectrophotometer oil analyzer

Product Introduction:

The HM-CY1 infrared spectrophotometer is developed and manufactured according to the Chinese environmental protection standards "HJ637-2018 Water Quality - Determination of Petroleum and Animal and Vegetable Oils - Infrared Spectrometric Method", "HJ1051-2019 Soil Petroleum Determination - Infrared Spectrometric Method", and "HJ1077-2019 Fixed Pollution Source Exhaust Gas - Determination of Oil Fume and Oil Mist - Infrared Spectrometric Method". This instrument is mainly used for the determination of oil content in surface water, groundwater, industrial wastewater, soil, fixed pollution source exhaust gas, oil fume, and oil mist.

Application scope:

Infrared spectrophotometer oil analyzer can be widely used in water environment detection systems, sewage treatment plants, water companies, petrochemicals, universities and research institutes, hydrology and water conservancy, metallurgy and steel, biomedicine, agricultural environment monitoring, wool textile printing and dyeing, marine environment monitoring, papermaking, medicine, agricultural technology, marine transportation and other fields.

Product principle:

HM-CY1 infrared spectrophotometer is used to extract oil substances from water using tetrachloroethylene according to HJ637-2018 standard, determine the total extract, and then adsorb the extract with magnesium silicate. After removing animal and vegetable oils and other substances, petroleum products are determined. The total extract and petroleum content were calculated based on the absorbance A2930, A2960, and A3030 at spectral bands with wave numbers of 2930 cm-1 (stretching vibration of C-H bond in CH2 group), 2960 cm-1 (stretching vibration of C-H bond in CH3 group), and 3030 cm-1 (stretching vibration of C-H bond in aromatic hydrocarbon), respectively. The content of animal and vegetable oils is calculated based on the difference between the total extract and petroleum content.

Product features:

1. This product adopts the calibration coefficient method specified by the national standard for testing principles, strictly following the formula of the national standard to ensure the testing results;

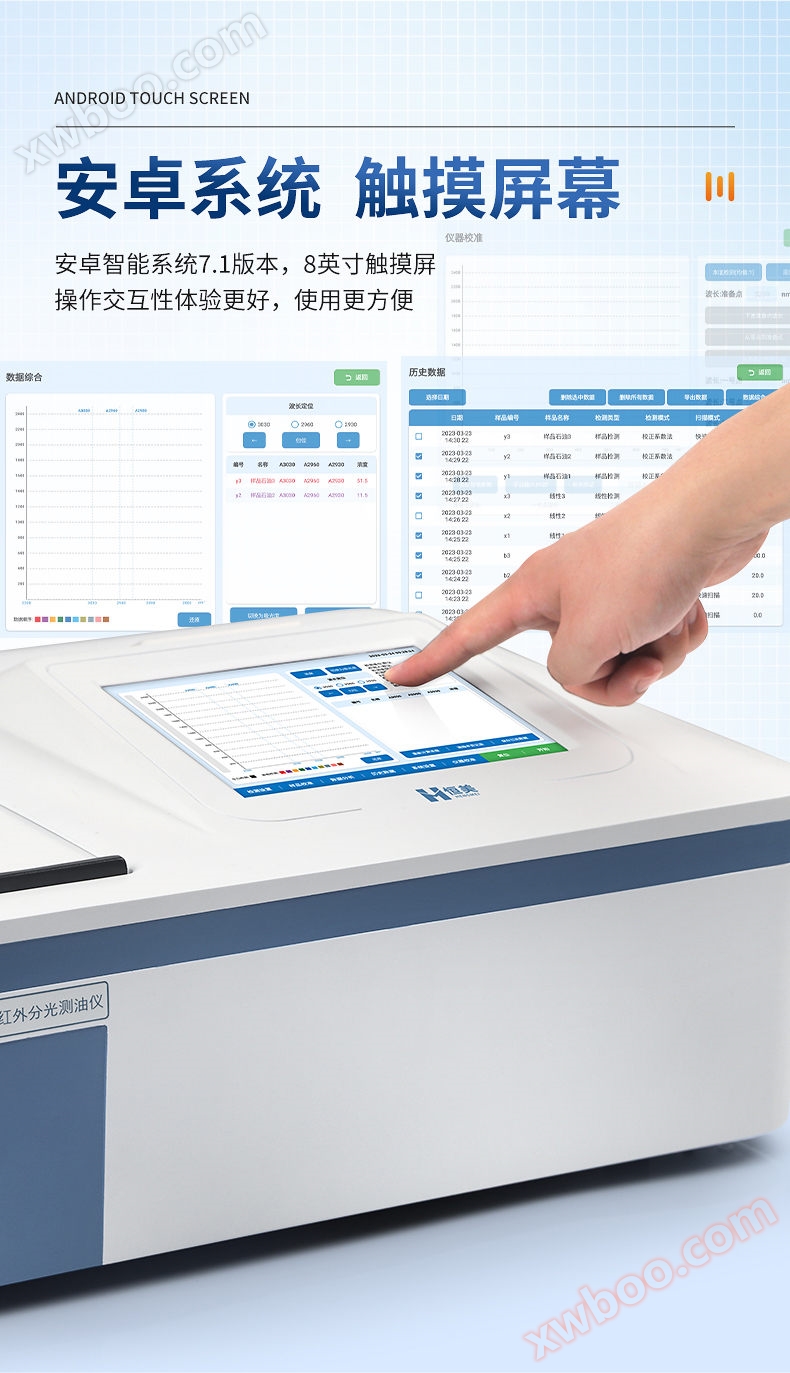

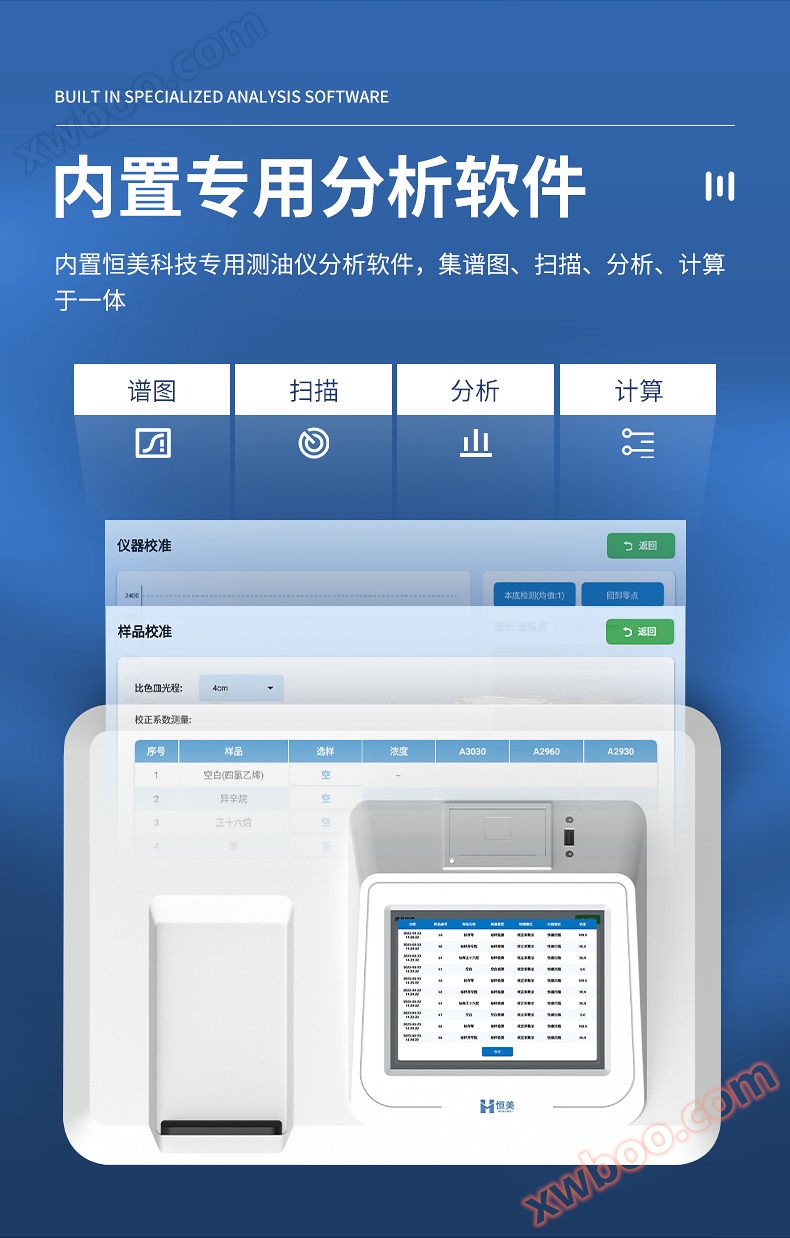

2. The instrument adopts the Android 7.1 intelligent operating system and is equipped with Hengmei Technology's dedicated analysis software, which integrates spectrum analysis, scanning, analysis, and calculation;

3. The instrument is equipped with an 8-inch high-definition color touch screen, which provides a better interactive operation experience and is more convenient and efficient to use;

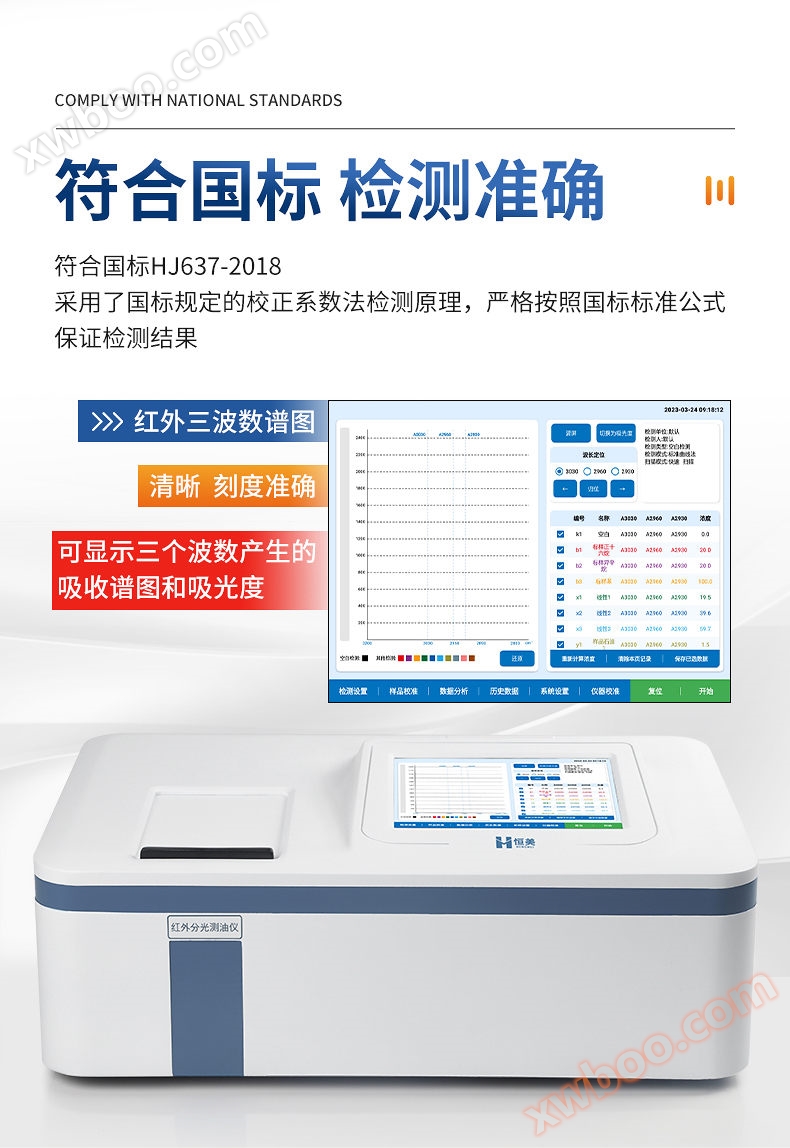

4. Compliant with standard HJ637-2018, the infrared three wave number spectrum is clear, the scale is accurate, and the absorption spectrum and absorbance generated by the three wave numbers can be clearly displayed;

5. The service life of the light source can reach more than 10000 hours, and the light source uses electric modulation to regulate the light source technology to prevent the internal temperature of the instrument from affecting stability;

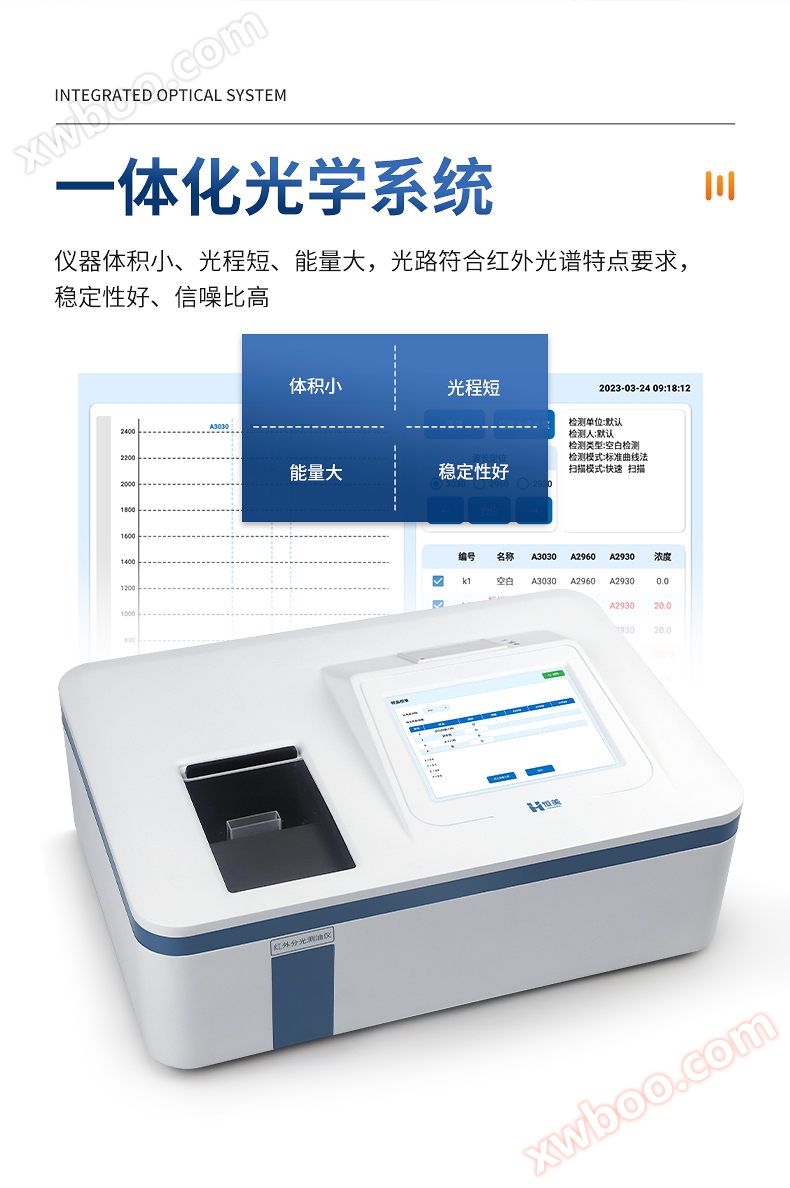

6. The detachable integrated optical system makes the instrument small in size, short in optical path length, and high in energy. The optical path meets the requirements of infrared spectroscopy, with good stability and high signal-to-noise ratio;

7. Not only does it have basic functions such as detection function settings, curve analysis, and historical data, but it can also zoom in and out of spectra, allowing users to infinitely refine spectra and observe curves at low concentrations more clearly;

8. Adopting a self-developed weak signal conditioning circuit, effectively shielding noise interference, greatly improving detection accuracy and detection limit;

9. High automation program application, users can perform single step testing of all instrument functions, automatic wavelength scanning, automatic correction and other functions through the Android system, making data detection more accurate;

10. The instrument has the function of detecting the purity of the extraction agent to effectively avoid detection data errors caused by the purity of the extraction agent not meeting the standard;

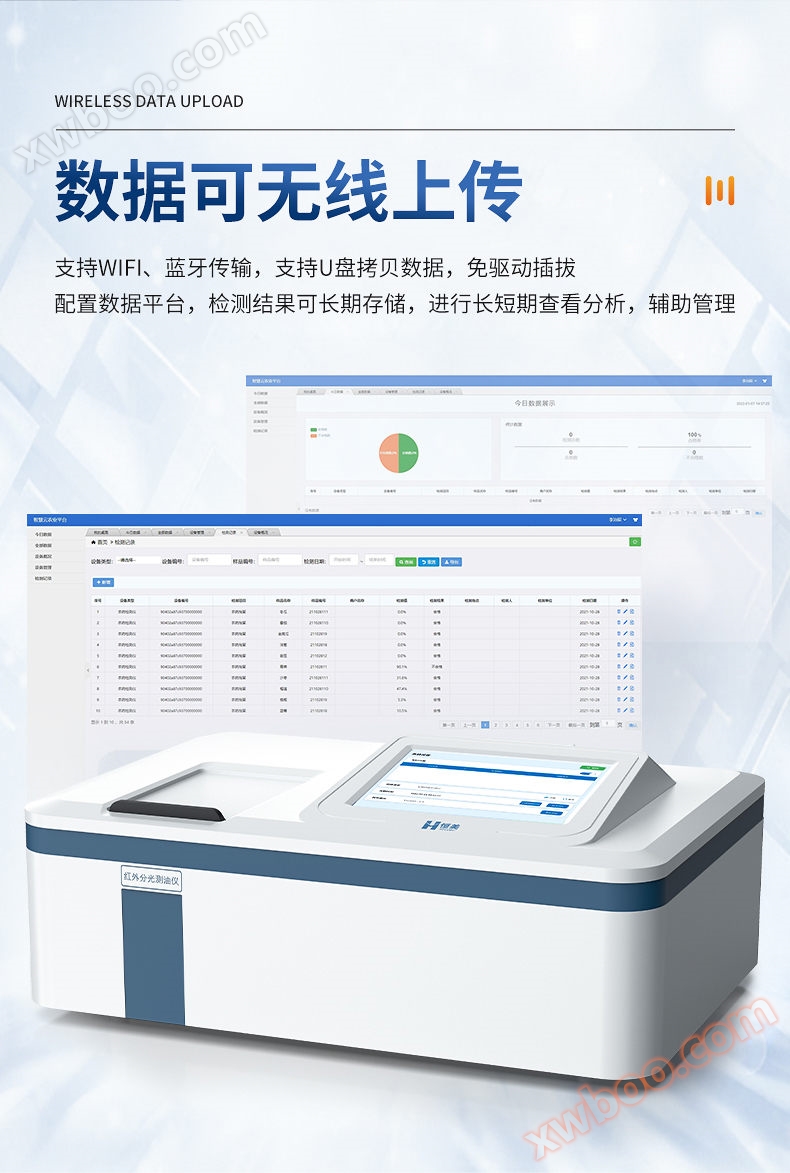

11. Supports WiFi and Bluetooth transmission, and data can be wirelessly uploaded to the cloud data management platform; Support copying data from USB flash drive, no need for driver insertion and removal;

12. Configure a cloud data management platform that can permanently store detection results for long-term and short-term viewing and analysis, and assist in management;

13. One click program upgrade function, no need for engineers to download on site, can upgrade the APP program by inserting a USB flash drive;

14. Adopting electrically modulated light sources not only reduces the heat generation intensity of the light source to facilitate system heat dissipation, but also simplifies the instrument structure and improves instrument reliability by reducing mechanical cutting motion components;

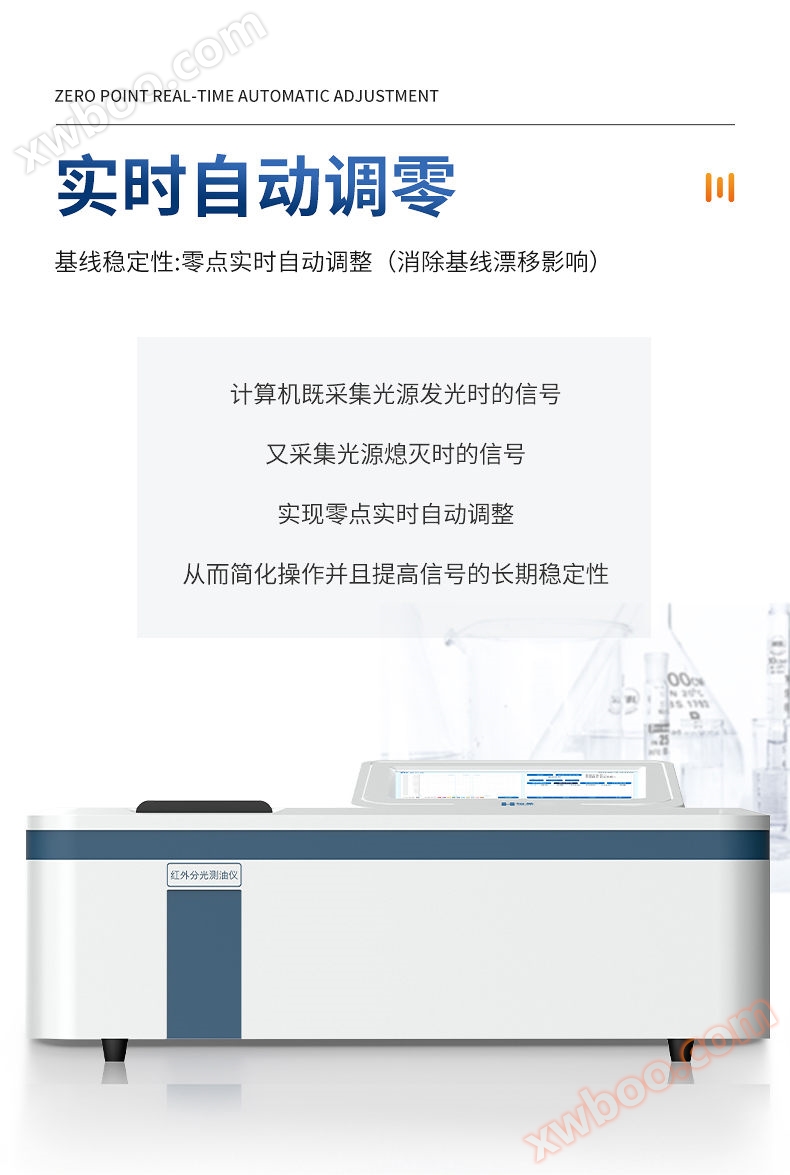

15. Real time automatic zero adjustment, the instrument collects both the signal when the light source is on and the signal when the light source is off, achieving real-time automatic zero adjustment, simplifying operation and improving long-term signal stability;

16. High measurement accuracy, using a high-precision 24 bit AD detection chip for analog-to-digital conversion, which can accurately measure uV level small signals;

17. Automatically synchronize network time to avoid inaccurate local time affecting print results due to prolonged use of the instrument;

Technical parameters:

Instrument detection limit: DL ≤ 0.04mg/L (3 times SD of 11 measurements of tetrachloroethylene blank solution);

Method detection limit: The detection limit is 0.06mg/L; When the sample volume is 500ml and the extraction solution volume is 50ml (HJ637-2018 standard);

Low detectable concentration: 0.003mg/L;

Sample measurement range: 0-100% oil (enrichment and dilution);

Basic measurement range: 0.0-800mg/L;

Resolution: 0.001mg/L;

Repeatability: RSD ≤ 0.6% (11 measurements of 30-100mg/L oil sample);

Accuracy error: ≤ 1%;

Correlation coefficient: r>0.999;

Spectral accuracy: 2nm;

Scanning speed: Full spectrum scanning, fast mode 45s/time, precision mode 3min/time;

Wave number range: 3400cm-1 to 2400cm-1 (i.e. 2941nm to 4167nm);

Absorption range: 0.0000-2.0000 AU (i.e. transmittance of 100-1% T);

Wave number accuracy and repeatability: ± 1cm-1;

Temperature and humidity range: 1 ℃ -40 ℃, humidity ≤ 90%;

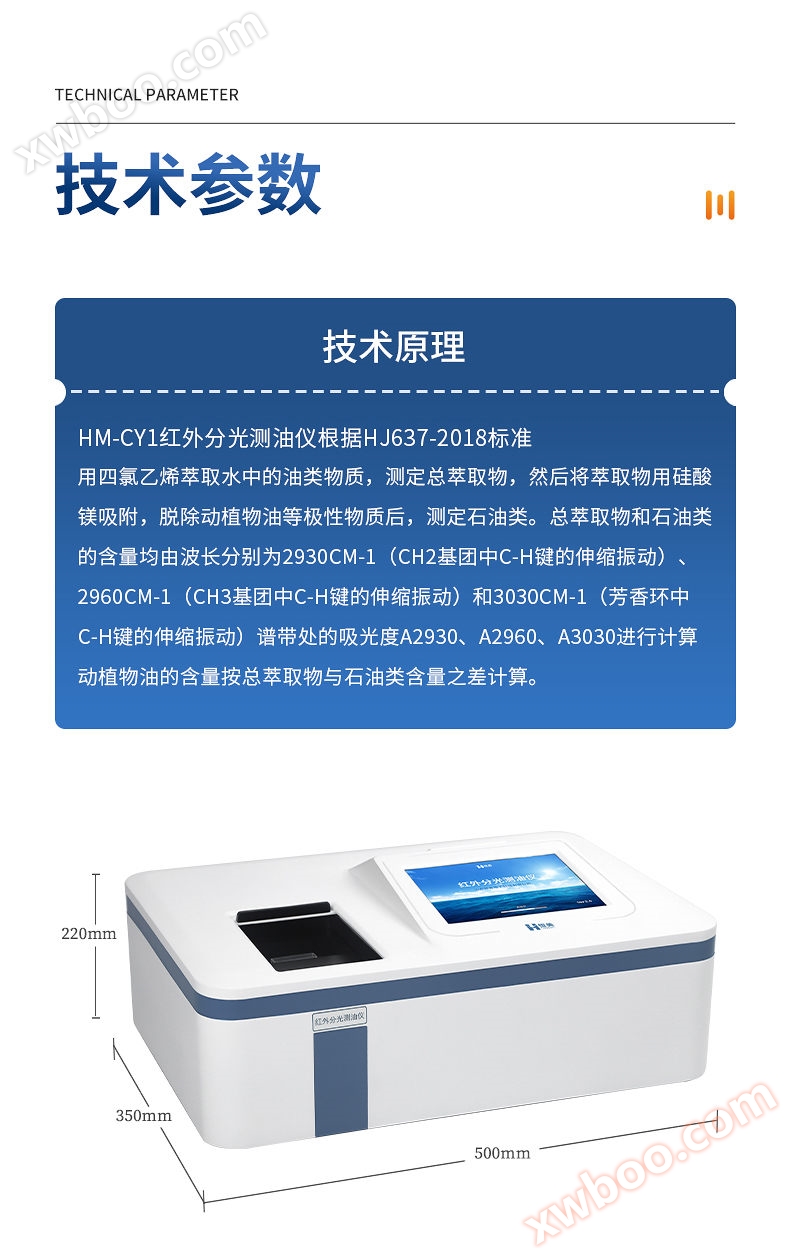

Host dimensions: 500mm × 350mm × 220mm (length, width, height);

Power supply: 100~240V, (50 ± 1) Hz, 50VA.
