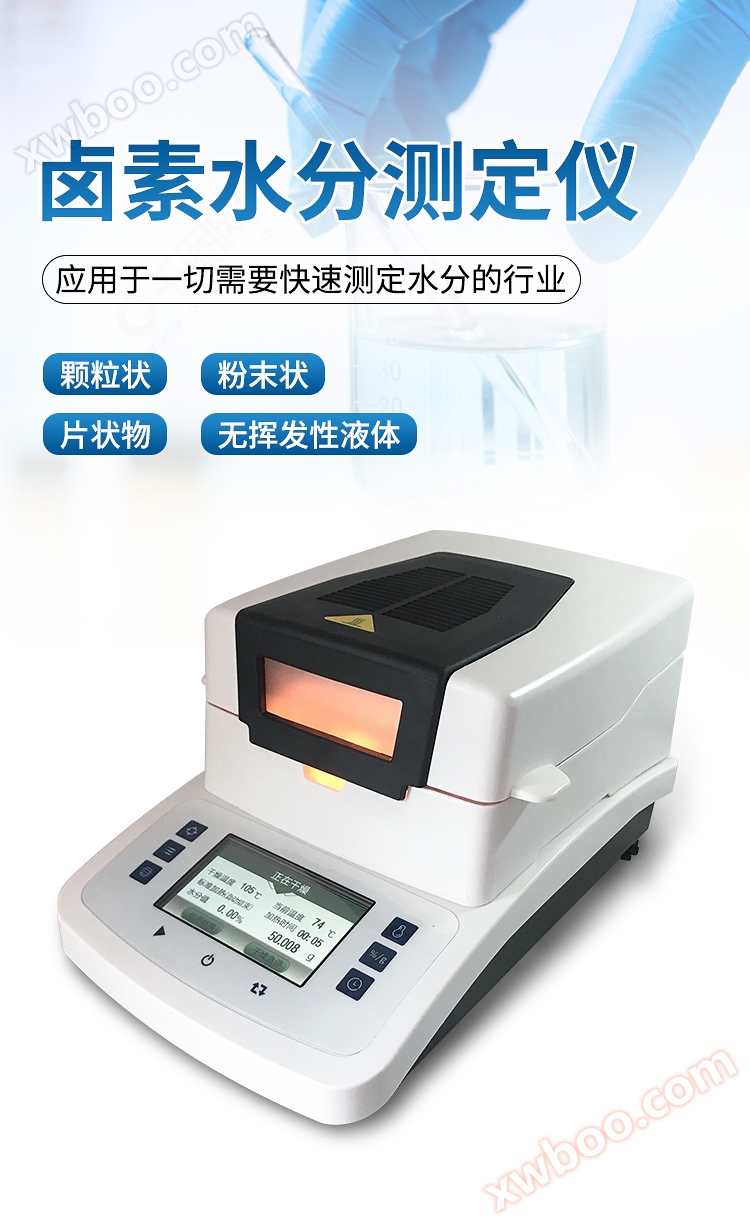

Halogen moisture detector

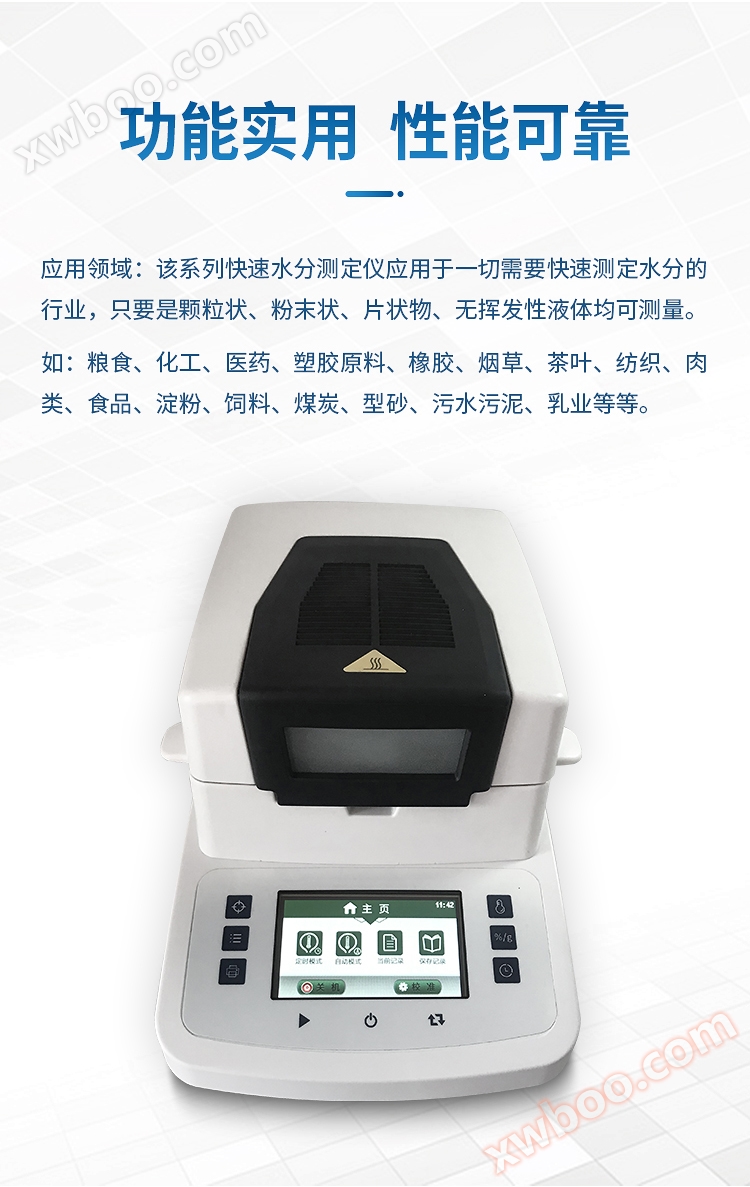

Application areas:

This series of rapid moisture analyzer is applied to all industries that require rapid moisture measurement. It can measure any particle, powder, sheet, or non-volatile liquid, such as grain, chemical, pharmaceutical, plastic raw materials, rubber, tobacco, tea, textile, meat, food, starch, feed, coal, molding sand, sewage sludge, dairy industry, etc;

working principle:

Traditional moisture determination generally uses oven drying method, which takes two to three or even three to four hours to test a sample, and also requires weighing with a balance and manual calculation to obtain the moisture value (moisture content) of the sample. The low efficiency of oven method for moisture determination cannot meet the fast-paced production needs of enterprises. The Lucky Brand rapid moisture analyzer uses an efficient drying heater - a high-quality ring halogen lamp - to quickly and uniformly heat the sample, and the moisture content of the sample is continuously dried. Throughout the measurement process, the instrument automatically displays the measurement results in real-time, including sample weight, moisture content, solid content, measurement time, heating temperature, etc.

This series of rapid moisture meters applies the principle of international oven drying method, and the measurement results have good consistency with the oven method moisture measurement. However, the work efficiency is much higher than that of the oven method moisture measurement. Generally, the sample can be measured in just a few minutes, so it is favored and praised by a large number of users.

characteristic:

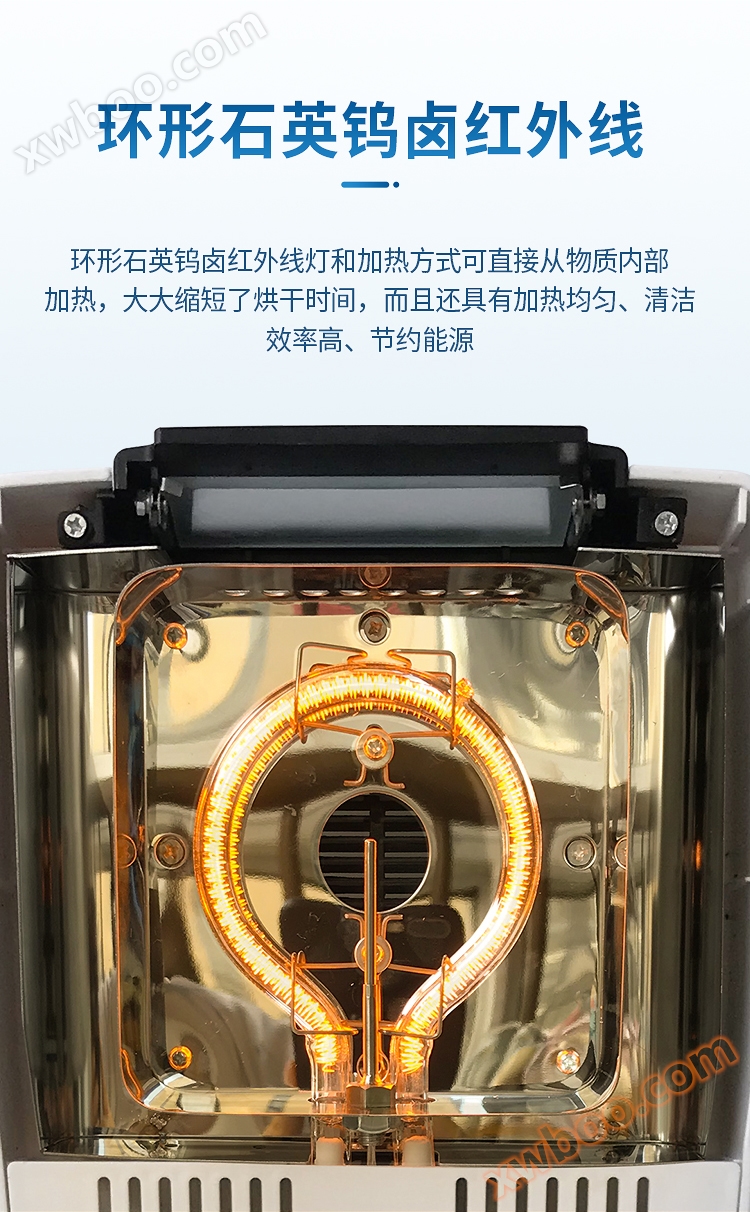

Halogen light heating

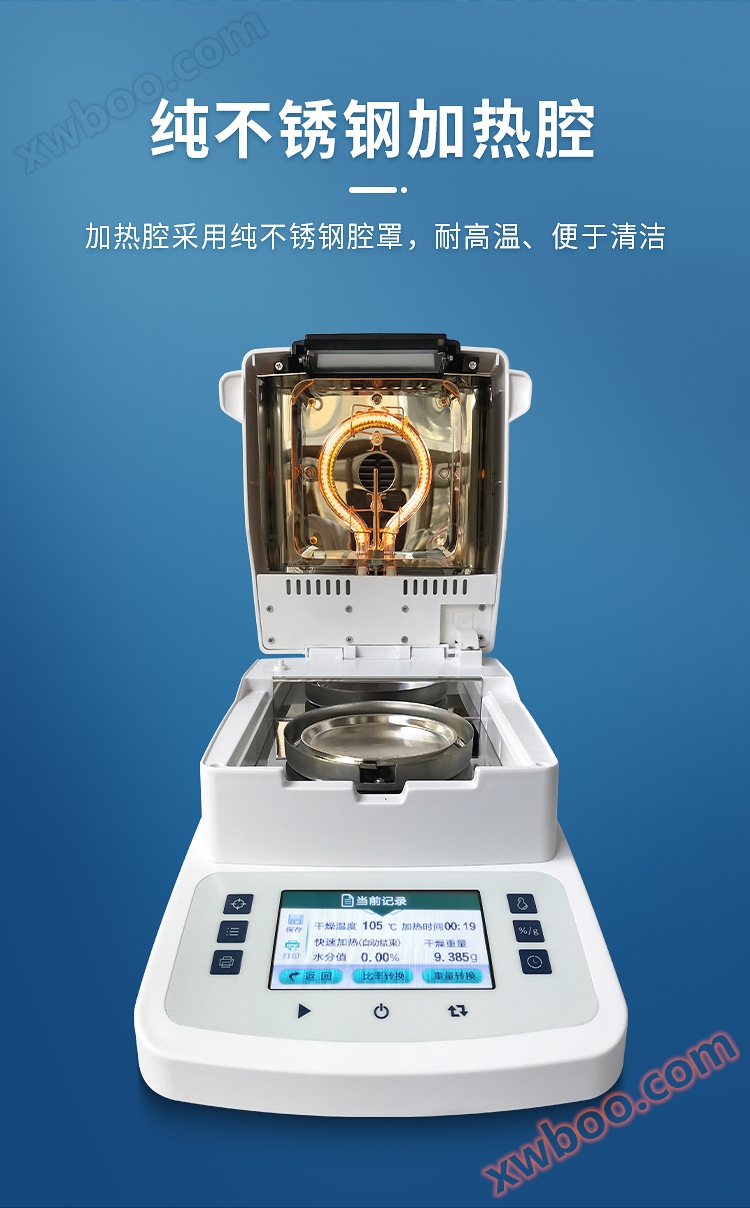

Stainless steel heating chamber

Temperature and time can be set

The percentage of moisture content displayed

The percentage of dry residue

LCD Touch Screen with Touch Scratchological Setting

Technical parameters:

Operation steps:

Firstly, evenly place the samples to be tested into the sample tray

Next, cover the heating cover and finally press the "start" button. The remaining work is automatically completed by the instrument. After the measurement is completed, the instrument will automatically sound an alarm, and the measurement result will be locked on the LCD display screen.

characteristic:

1. No installation or debugging required, can be used after unpacking;

2. No need for training, simple operation, saving tedious usage steps;

3. Short measurement time and high work efficiency;

4. Uniform heating, stable performance, and accurate testing;

5. Small size and light weight;

6. Fully automatic measurement, alarm reminder after measurement completion, no need to supervise the measurement process;

7. Widely used and almost applicable for moisture determination in various industries;

8. German imported sensors make instrument testing more excellent and accurate;

9. The unique windproof cover design makes the instrument weighing system more stable;

10. The moisture and solid content of the sample can be converted simultaneously;

11. The heating chamber adopts a pure stainless steel chamber cover, which is heat-resistant and easy to clean.
