FT-300IV semiconductor powder resistivity tester

Detailed informationFT-300Ⅳ

Semiconductor powder resistivity tester

Powder resistivity tester 1Function introduction: This instrument adopts the four terminal measurement method and is suitable for carbon powder plants, coking plants, petrochemical plants, powder metallurgy plants, universities, and research departments. It is an important tool for inspecting and analyzing the quality of powder samples.4.3This instrument adopts.The large LCD screen displays the resistance value, resistivity, conductivity value, temperature, pressure value, and unit automatic conversion. Different testing fixtures can be configured to meet the testing requirements of different materials. Testing fixtures can be selected according to product and testing project requirements.

Using a membrane button switch panel, it is easy to operate, durable, and conforms to ergonomic operating standards IIFT-300ⅣSemiconductor powder resistivity tester

Satisfying: YST 587.6-2006 Testing Method for Calcined Petroleum Coke for Carbon Anodes Part 6 Determination of Powder Resistance;three、FT-300ⅣSemiconductor powder resistivity tester

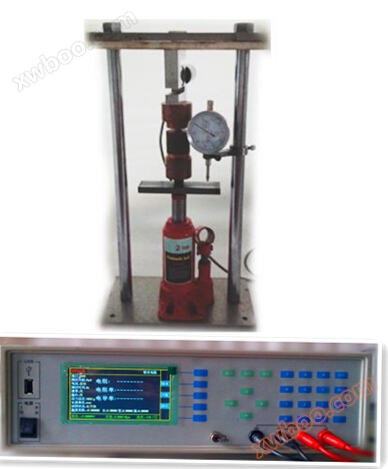

The manual powder testing device can also be configured (optional) with an automatic powder testing device. When testing powder, the device can obtain data such as height, diameter, pressure, etc. after powder compaction, and automatically calculate the required data after inputting it into the instrument It can conveniently solve the measurement needs of resistance, resistivity, and conductivity of powder and granular materials, is economical, has outstanding functions, and is designed reasonably. It is an ideal testing instrument for the powder industry Provide both Chinese and English language operation interfaces4technical parameter
：10^-51. Electrical resistivity:10⁶～1×
2.Ω-cm10^-4Resistance:10⁵～1×

3.Ω10^-6Conductivity: 5 ×10⁴～

4.ms/cm

5.Resolution: 0.1 μ Ω measurement error ± (0.05% reading ± 5 words)

6.Measuring voltage range: 2mV 20mV 200mV 2V measurement accuracy ± (0.1% reading)

7.resolving power: 0.1uV 1uV 10uV 100uV
Current output: DC current continuously adjustable from 0 to 1000mA, powered by AC power supply.

8.Range: 1 μ A, 10 μ A, 100 µ A, 1mA, 10mA, 1000mA, Error: ± 0.2% Reading ± 2 wordsDisplay mode: LCD display

9.Resistance value, resistivity, conductivity value, temperature, pressure value, and unit automatic conversion

10.Sensor pressure: 200kg (other specifications can be customized)

Powder measuring device mold: inner diameter 10mm; Height: 25mm;

11.Pressure method: manual hydraulic pressure/electric pressure method (optional)

12. Power supply: 220 ± 10% 50HZ/60HZHost sizeInch:

13.330mm*350mm*120mmNet weight:about

14.6kg1Standard external selection:.）Standard calibration resistor1-52One;）.PC3A set of software;.）4Computers and printers are configured according to customer requirements;.）1Measurement certificate
